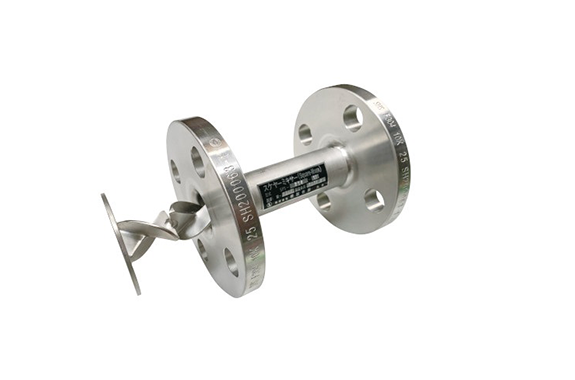

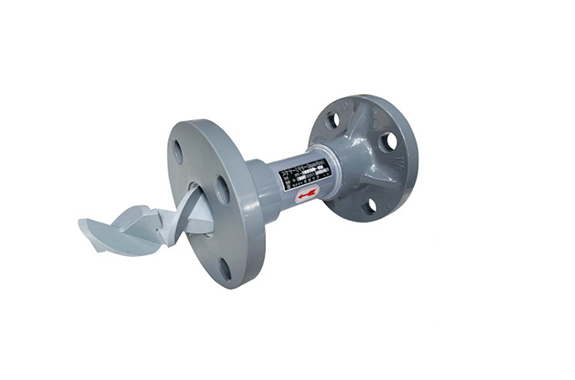

Tohkemy Line Mixer Pump Accessories

Manufacturer: Tohkemy Corporation
Model: Line Mixer

Features

Compact and_ reasonable (no power required)
Low pressure drop and_ large mixing effect (can be installed in existing piping)
Possible to be used for various fluids (various liquids, gas)
Easy to clean (element can be pulled out)
Wide variety (4, 6, 8 elements, sanitary specifications, etc.)

Specification

Model code explanation

SPT	–	80	4	–	1	S	R	J	X
		1	2		3	4	5	6	7

1.Nominal diameter	Number with connection diameter of 10 ~150A (It may not be available depending on diameter)
2.Number of elements per unit	4：1 unit 4 elements 6：1 unit 6 elements 8：1 unit 8 elements
3.Material	1：SUS304 2：SUS316 3：PVC 4：SS 5：STPG＋PTFE Lining
4.Connection	Nil：JIS10k Flange connection S：Sanitary type clamp joint
5.Disassembly of the element	Nil：Element can be disassembled R：Element can not be disassembled
6.With jacket	Nil：No jacket J：With jacket
7.Special specifications	X：For other special specifications

<Specially manufacturing>
We also accept orders for large diameter products of 200A or larger, titanium/Hastelloy materials, various lining products, and various joint shape products.
Please contact us for further information.

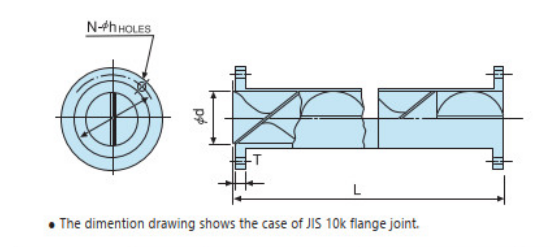

Dimensional drawing

Model	Nominal Diameter	Housing Body				Flange Thickness		Length (L) per Unit (mm)
		Inner Diameter φ, d (mm)		Channel Cross-Sectional Area (cm²)		T (mm)		4 Elements		6 Elements		8 Elements
		Material 1, 2, 4	Material 3	Material 1, 2, 4	Material 3	Material 1, 2, 4	Material 3	Material 1, 2, 4	Material 3	Material 1, 2, 4	Material 3	Material 1, 2, 4	Material 3
		SUS/SS	PVC	SUS/SS	PVC	SUS/SS	PVC	SUS/SS	PVC	SUS/SS	PVC	SUS/SS	PVC
SPT-10□	10A	12.7	—	1.01	—	12	—	90	—	140	—	180	—
SPT-15□	15A	16.1	—	1.79	—	12	—	90	—	140	—	180	—
SPT-20□	20A	22.2	—	3.53	—	14	—	120	—	180	—	240	—
SPT-25□	25A	27.2	—	5.40	5.67	14	—	140	—	210	—	280	—
SPT-40□	40A	41.2	40.0	12.7	10.9	16	16	210	211	315	311	420	411
SPT-50□	50A	52.7	51.0	21.0	18.3	16	20	265	271	398	401	530	531
SPT-65□	65A	65.9	67.0	33.1	31.9	18	22	330	336	495	496	660	656
SPT-80□	80A	78.1	77.0	46.3	41.9	18	22	395	416	593	616	790	816
SPT-100□	100A	102.3	100.0	80.1	72.5	18	22	505	518	758	768	1,010	1,018
SPT-125□	125A	126.6	125.0	122.0	112.7	20	24	640	658	960	978	1,280	1,298
SPT-150□	150A	151.0	146.0	174.5	155.7	22	26	770	778	1,155	1,158	1,540	1,538

The dimension table shows the case of a JIS 10K flange connection.
Please contact us for dimensions of 200A or larger, PTFE lining, and sanitary types with clamp joints.
