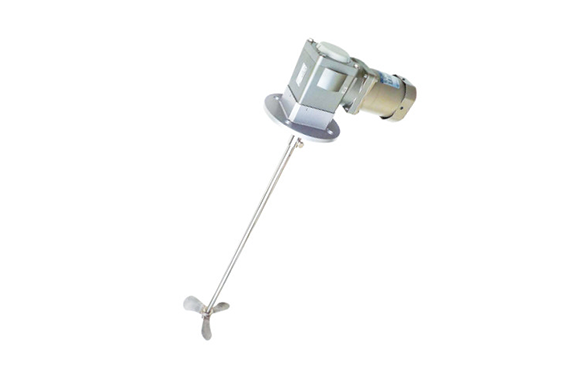

Tohkemy Small Agitator TFN Type Agitator And Tank

Manufacturer: Tohkemy Corporation
Model: Small Agitator TFN Type

Features

Tough blades and shafts with excellent corrosion resistance
Both blades and shafts are equipped with SUS304 and rubber lining as standard.
Excellent stirring effect
Please select an efficient 3-blade propeller and 2-paddle blade (1st and 2nd stage).
Rotation speed according to the application
Select two types, medium speed rotation and low speed rotation, depending on the application.

Model and specifications

ModelMotor
(W)
Reduction
ratio
ImpellerMax. agitating capacity
(m³)
Weighta pprox.
(kg)
Speed (rpm)Type and stageDiameter
φD
Diluted
liquid
Medium
viscosity
50Hz60Hz
TFN-5601:53003603-blade propeller x 1 stage1200.18
1600.28
TFN-201:2075902-blade pitched paddle1 stage2500.19
2 stages0.210

*Max. agitating capacity (L) is reference only, varies according to agitation purpose,
tank shape, agitation time and liquid properties.

Common specifications

Model
No.
Similarly
JIS 10K
HApproximate
equipment
weight (kg)
NTC4-037 -15200A917139
-21152
-25959200
-29205
-35219
-43250A1,029291
-59300A1,133436
NTC4-055 -15200A960162
-21250A1,072272
-25279
-29294
-35300A1,116376
-431,242435
-59300A1,286582
NTC4-075 -15250A1,110278
-21300A1,220369
-251,279415
-29418
-35443
-43300A1,307529
-59638
NTC4-110 -15300A1,282379
-211,341429
-25469
-29300A1,369515
-35556
-43400A1,768818
-59929

Model
No.
Similarly
JIS 10K
HApproximate
equipment
weight (kg)
NTC4-150 -15300A1,401470
-211,440582
-25585
-29400A1,815848
-351,836892
-43944
-591,9021,186
NTC4-185 -15300A1,505592
-21400A1,919896
-25930
-291,940967
-35974
-432,0061,206
-59450A2,2841,656
NTC4-220 -15300A1,544634
-21400A1,940915
-25952
-291,9651,052
-352,0061,206
-43450A2,3061,557
-592,3091,843
NTC4-300 -15400A2,064934
-212,0891,028
-252,1301,148
-291,154
-43450A2,4331,760
-591,860

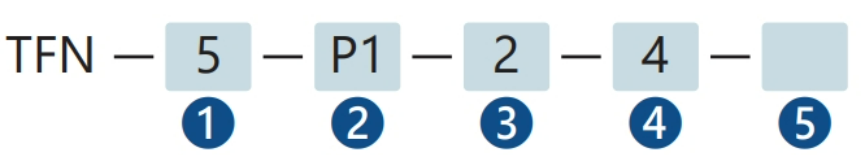

Model Code Explanation

1 :Reduction ratio
51:5
201:20

2 :Impeller
P13-blade propeller (φ120) x 1 stage
P23-blade propeller (φ160) x 1 stage
D12-blade paddle (φ250) x 1 stage
D22-blade paddle (φ250) x 2 stages

3 :Motor(voltage, phase, pole, insulation class)
2200/220V, three-phase,4P, class B
4400/440V, three-phase,4P, class B

4 :Liquid-end material
4SUS304
4LSUS304 + rubber lining

5 :Option
NILw/ standard oil seal
Ow/ cover for outdoor use
SAnti-rust specification

* Incase of 4) Liquid-end material is “4L”, 5) Option shall be “S”.

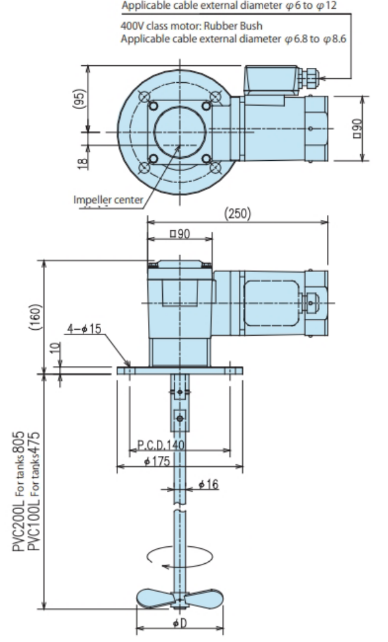

Dimensions

  • Unit(mm)

    ModelφD
    TFN-5-P1120
    TFN-5-P2160
