Tohkemy Y Shaped Strainer/ Sight Glass/ Degassing Joint Pump Accessories

Manufacturer: Tohkemy Corporation
Model: Y Shaped Strainer/ Sight Glass/ Degassing Joint

Outline drawing / format

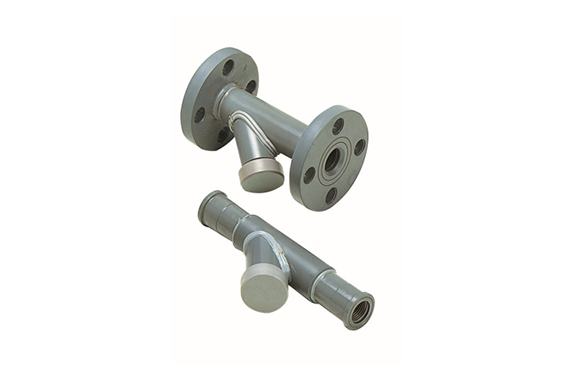

Y-shaped Strainer
Dust, dirt, scales and other foreign matters unavoidably get into the fluid going into the pump. Such matters may be stuck in the valve sheet and other components or even damage them, resulting in poor fixed feed rate accuracy. It is therefore indispensable to add a strainer at the pump’s suction side. The Y-shaped strainer is highly recommendable because its filter mesh is easy to take in and out.

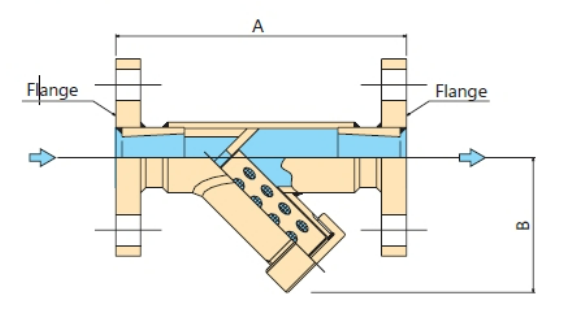

Flange Type

Model	Size	A	B	Mesh	Flange	Approx. Weight (g)
YF-15	15	140	65	20	15A	350
YF-20	20	160	70	20	20A	550

Material: PVC

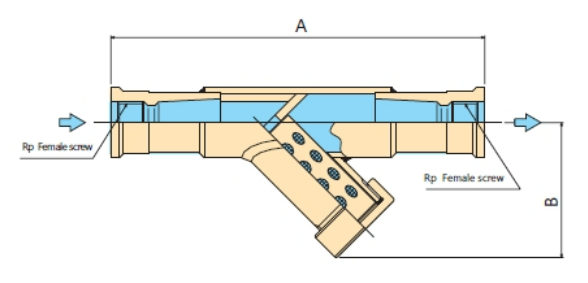

Screw type

Model	Size	A	B	Mesh	Rc Female Screw	Approx. Weight (g)
YS-15	15	180	65	20	1/2	150
YS-20	20	200	67		3/4	250
YS-25	25	225	105		1	600

Material: PVC

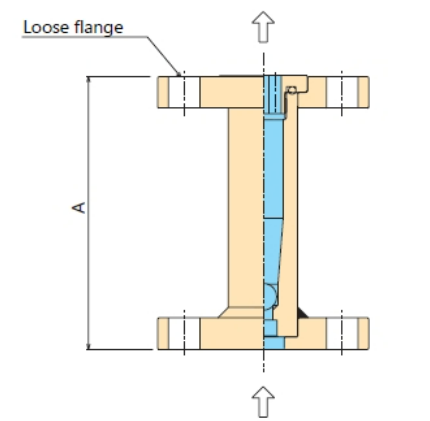

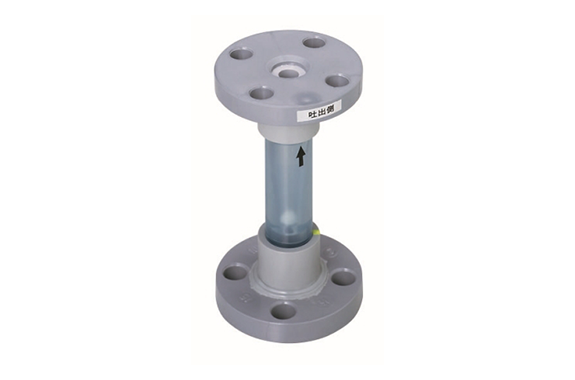

Sight Glass
Mounted at the pump’s discharge side, the sight glass serves to monitor the discharge action and to avoid non-injection and other troubles.

(Unit: mm)

Model	A	Flange (JIS 10K)	Flow Rate (L/min)	Approx. Weight (g)
SGF-15N	100	15A	0.01–1.6	300
SGF-20N	130	20A	1.2–4.0	380
SGF-25N	130	25A	4.0–7.0	530

Material: Body PVC / Clear PVC
Check Ball: PTFE
Notes:
1) The flow rates are for reference.
2) If the pressure at the pump discharge point is lower than that on the suction side, be sure to install a back-pressure valve.

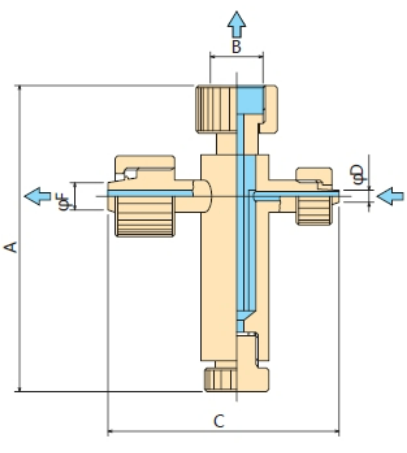

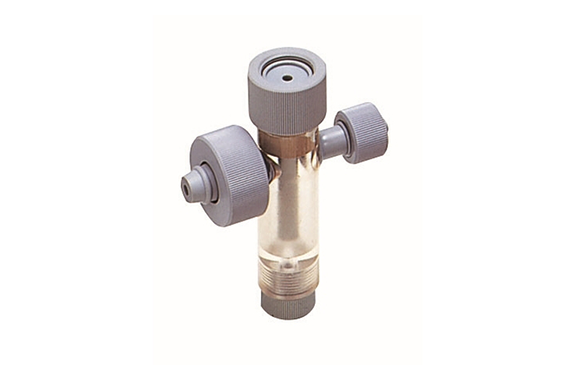

Degassing Joint

Air coming into the suction pipe or gases generated from sodium hypochlorite, hydrochloric acid, and similar chemicals may cause the so-called gas lock, making discharging impossible.
The degassing joint is installed at the pump’s suction side and used to separate the air and gases from the suction pipe and to feed the chemical alone into the pump.
The pump’s suction side is under boost pressure to keep it free from the air and gases. The gas vent pipe should be positioned above the liquid level of the chemical tank and open to the atmosphere. Degassing Joint
