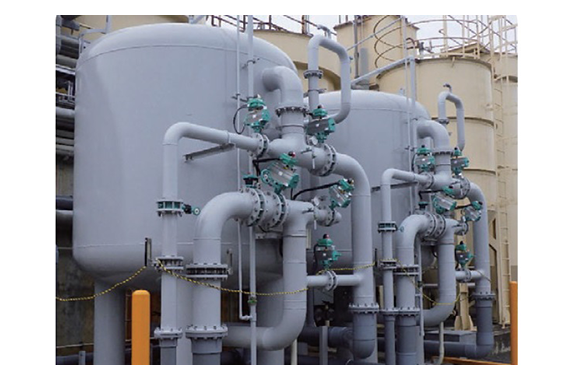

Tohkemy Granular Filtration System Water Treatment Systems

Manufacturer: Tohkemy Corporation
Model: Granular Filtration System

Relationship Between Filtration Tower Size and Flow Rate

Lineup includes tower diameters from φ600mm to φ3,000mm(other sizes are available on special request).
It is recommended to calculate the filtration time per day as 22 hours or less in consideration of washing time.

Specifications

		Drinking Water Treatment	Reclaimed water	Corrosion resistant specification	Options
Main body material		SS400			SUS304,FRP
Painting	outside	Polyurethane resin painting			Salt resistant painting
Painting	internal	Epoxy resin painting for waterworks	Non-tar epoxy resin painting	Hard rubber lining	FRP lining
Front piping		SGP-Zn	SGP-Zn	VP	HIVP,SUS304 TP
Tower internal piping		SGP-Zn	SGP-Zn	VP + strainer	HIVP,SUS304 TP
Automatic valve		Pneumatic double-acting type butterfly valve			Electric butterfly valve; Electric 5-way valve
Main applications		●Turbidity and SS removal ●Iron and manganese removal ●Color removal	●Turbidity and SS removal ●Color removal	●Activated carbon adsorption tower ●Ion exchange tower ●Chloride ion (above 200mg/L)	●Air washing ●Surface washing

We will propose the optimal filter tower specifications based on the filter media, water quality, surrounding environment, installation location, and other factors.
For chloride ion concentrations of 200 mg/L or higher, we recommend corrosion-resistant specifications.
When use pneumatic double-acting type butterfly valve, an instrument air (compressor) is required.
SS400: steel plates, steel strips, structural steel, flat steel and steel bars
SUS304: Austenitic stainless steel
SGP-Zn: Carbon steel pipe for piping (zinc plated)
VP…Rigid polyvinyl chloride (PVC) pipes
HIVP…Impact-resistant rigid PVC pipes
SUS304 TP…Stainless steel pipes

		Standard select switch type	Standard touch panel type	Salt damage resistant type	Options
Place of installation		Outdoor	Outdoor	Outdoor	Indoor
Cabinet	Material	Steel plate	Steel plate	Steel plate	Stainless steel
	Painting	Melamine resin baking painting	Melamine resin baking painting	Polyester powder coating	Zinc plating
	Color	Munsell 5Y7/1	Munsell 5Y7/1	Munsell 5Y7/1	on Request
Machine operation		Select switch	Touch panel	Select switch	Touch panel
Process indication		Indicator lamp	Touch panel	Indicator lamp	–
Measurements display on panel^*1		Indicator	Touch panel	Indicator	Measuring instrument CP panel-mounting/ separately (signal only) Measurements: pH, Turbidity, residual chlorine, etc.
*Data logging^1**		Data logger	Touch panel	Data logger	–
Main applications		General Plant		Salt damage area	–

Remote monitoring of operational status, such as each measured value and process, is also available (optional).
We can accommodate your specifications. Please contact our sales department.
*1: Please specify the number of measured value (4-20mADC) inputs.
