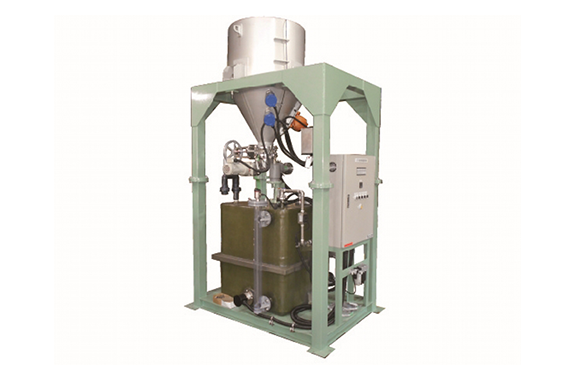

| Model | SAD-0.1S-1.0S | SAD-0.2S-2.0S | SAD-0.3S-3.0S | |
|---|---|---|---|---|
| Max. dissolving capacity | 200L/h | 400L/h | 600L/h | |
| Dissolving concentration (*1) | 5% | |||
| Powder feed method | Variable inverter Screw feeder type | |||
| Hopper Standard : SUS304 Semi-standard : SS400 | Effective 1.0m3 φ1,200 mm×900 mmSH | Effective 2.0m3 φ1,400 mm×1,300 mmSH | Effective 3.0m3 φ1,600 mm×1,500 mmSH | |
| Powder filling method | Manual filling + Suction type dust collector | Lorry filling + Pulse jet type dust collector | ||
| Bridge break method | Vibrator | Vibrator + Aeration + Reserve tank | ||
| Dissolving tank Standard : SUS304 Semi-standard : SS400.FRP | Effective100 L □500 mm×600 mmH | Effective 200 L □600 mm×750 mmH | Effective 300 L □650 mm×900 mmH | |
| Nozzle | Feed water inlet | Rc1/2 | ||
| Solution outlet | 25A — JIS10KF | 20A — JIS10KF | 20A — JIS10KF | |
| Air inlet | Rc3/8 | |||
| System Dimension Examples (*2) | □1500mm×4300mmH | □1700mm×4900mmH | □1850mm×5700mmH | |
| Approx. product weight (*2) | Approx. 700kg | Approx. 800kg | Approx. 1,000kg | |
| Installation | Indoor (Please contact us if it is outdoor) | |||
| Utility | Water supply (*3) | 8L/min×0.1～0.4MPa | 13L/min×0.1～0.4MPa | 20L/min×0.1～0.4MPa |
| Feed air | 60NL/min×0.5～0.85MPa | 100NL/min×0.5～0.85MPa | ||
| Power source | AC 200/200/220 V 50/60 Hz 3 phase | |||
| Power consumption | 4,000VA | 6,600VA | 8,600VA | |
| Standard accessories | Common base, Control panel, Water feed piping, Agitator, Level switch, Powder level gauge, Vibrater, Dust collector (bug filter) *4 Gate valve, Dry air unit, Temperature sensor, Heater for dissolving *5 | |||
| Option | Load cell (For residual powder management in the hopper) / Dosing pump | |||
1 A guide for feeder capacity. It varies depending on powder property and state.
2 It varies with or without pulse jet type dust collector or handrail etc.
3 If the hardness is high, calcium carbonate may be formed. Please supply dilution water to guide the hardness below 70.
4 It prevents powder from swirling up when powder is filled to the hopper.
5 It keeps the temperature of water constant to prevent sodium carbonate from undissolving.
6 Please use Na₂CO₃ (Dense) for sodium carbonate powder.
