| Model | Motor (W) | Reduction ratio | Impeller | Max. agitating capacity (m3) | Weighta pprox. (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Speed (rpm) | Type and stage | Diameter φD | Diluted liquid | Medium viscosity | ||||||
| 50Hz | 60Hz | |||||||||
| TFN-5 | 60 | 1:5 | 300 | 360 | 3-blade propeller x 1 stage | 120 | 0.1 | — | 8 | |
| 160 | 0.2 | — | 8 | |||||||
| TFN-20 | 1:20 | 75 | 90 | 2-blade pitched paddle | 1 stage | 250 | — | 0.1 | 9 | |
| 2 stages | — | 0.2 | 10 | |||||||
Tohkemy Corporation

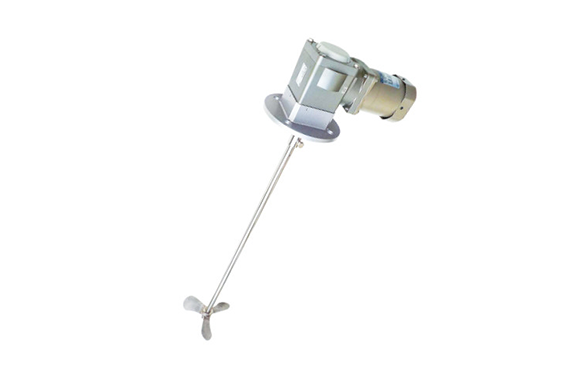

Tohkemy TFN Type Agitator And Tank
Manufacturer: Tohkemy Corporation
Model: TFN Type
Features
Standard lineup of SUS304 and rubber lining for both impellers and shafts
Selectable from two types, medium-speed and low-speed rotation
Excellent agitating effect by the impeller shape that can be selected according to the rotation speed
Model and specifications
*Max. agitating capacity (L) is reference only, varies according to agitation purpose, tank shape, agitation time and liquid properties.
Common specifications
| Motor | Standard | Three-phase, 4P, class B, 50Hz (200/220V), 60Hz (200/220/230V), TEFC indoor flange type |
| Semi-standard | Three-phase, 4P, class B, 50Hz (380/400/415/440V), 60Hz (380/400/415/440V), TEFC indoor flange type | |
| Reducer | Spur-gear multi-stage combination | |
| Color | Astero silver for motor and reducer, Silver for body | |
| Standard liquid-end material | SUS304 / SUS304 + rubber lining | |
| Standard accessories | * Mounting bolts (w/ washers) M12 x 35L 4 sets, * Hexagonal wrench 2.5, 4.0, * Instruction manual | |

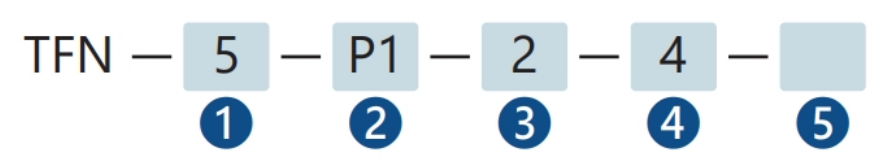

Model Code Explanation
1 :Reduction ratio| 5 | 1:5 |
| 20 | 1:20 |
2 :Impeller
| P1 | 3-blade propeller (φ120) x 1 stage |
| P2 | 3-blade propeller (φ160) x 1 stage |
| D1 | 2-blade paddle (φ250) x 1 stage |
| D2 | 2-blade paddle (φ250) x 2 stages |
3 :Motor(voltage, phase, pole, insulation class)
| 2 | 200/220V, three-phase,4P, class B |
| 4 | 400/440V, three-phase,4P, class B |
* Incase of 4) Liquid-end material is “4L”, 5) Option shall be “S”.
4 :Liquid-end material
| 4 | SUS304 |
| 4L | SUS304 + rubber lining |
5 :Option
| NIL | w/ standard oil seal |
| O | w/ cover for outdoor use |
| S | Anti-rust specification |

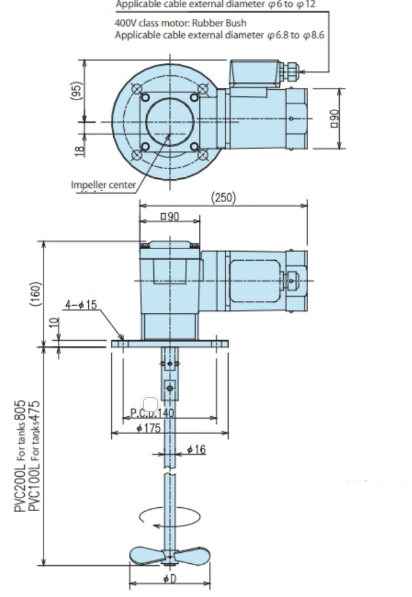

Dimensions
Unit(mm)
| Model | φD |
|---|---|
| TFN-5-P1 | 120 |
| TFN-5-P2 | 160 |
