Tohkemy Corporation

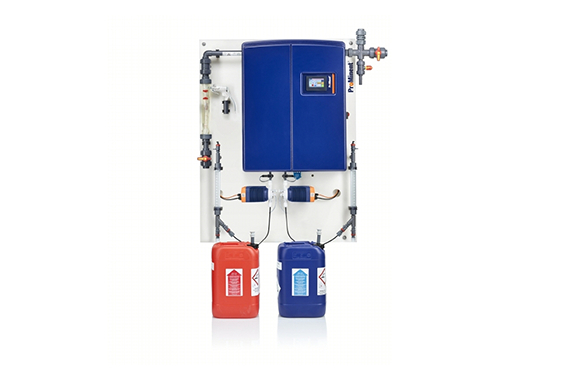

Tohkemy Verozon CDV Series Unit Systems
Manufacturer: Tohkemy Corporation
Model: Verozon CDV Series
Features
Simple and safe continuous chlorine dioxide generator for medium weight applications
“Two-component method” using 7.5% sodium chlorite and 9% hydrochloric acid
Many valuations of the amount generated, suitable for various applications
Can be used by generating chlorine dioxide by various internal / external controls
Calibration kit (option) enables confirmation and calibration of drug injection amount during operation.
Specification
| model | ClO2Amount generated (maximum) (g/h) | ClO2Water concentration (mg/L) | Maximum chemical consumption | Reference amount of treated water (m3/h) *1 | size (mm) | mass (kg) | power consumption (w) | |
|---|---|---|---|---|---|---|---|---|
| NaClO2 (L/h) | HCl (L/h) | |||||||
| CDVc 20 | 1～20 | 20,000 | 0.5 | 0.5 | 2～40 | 1344 x 1002 x 200 | 26 | 84 |
| CDVc 45 | 2～45 | 20,000 | 1.125 | 1.125 | 40～90 | 1344 x 1002 x 200 | 27 | 84 |
| CDVc 120 | 6～120 | 20,000 | 3 | 3 | 12～240 | 1344 x 1002 x 200 | 28 | 84 |
| CDVc 240 | 12～240 | 20,000 | 6 | 6 | 24～480 | 1342 x 1000 x 248 | 45 | 94 |
| CDVc 600 | 30～600 | 20,000 | 15 | 15 | 60～1,200 | 1711 x 1200 x 273 | 75 | 196 |
| CDVc 2000 | 100～2,000 | 20,000 | 50 | 50 | 200～4,000 | 1900 x 1400 x 370 | 120 | 310 |
1: Reference value when the injection concentration is 0.5 mg / L
The generated 20,000 mg / L chlorine dioxide water is first diluted with bypass water (200 mg / L or less recommended).
Power supply voltage AC100-240V 50 / 60Hz
Flow sheet
