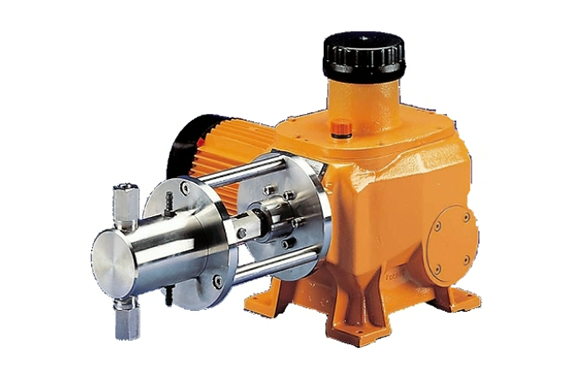

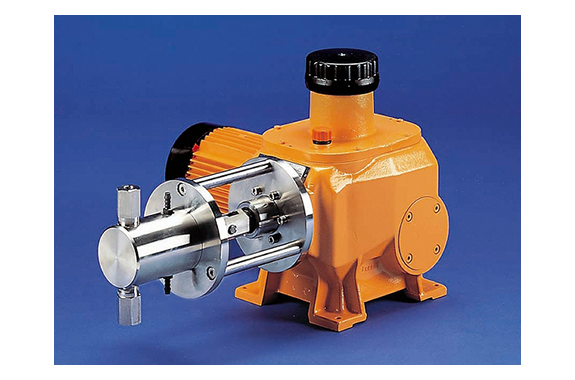

Tohkemy Macro TZ Plunger Type Chemical Pump

Manufacturer: Tohkemy Corporation
Model: Macro TZ Plunger Type

Features

Compatible with two types of linear diaphragm / plunger
Compatible with PTFE diaphragm type and plunger type for high pressure discharge
We provide the optimum application according to the intended use.
Medium-capacity plunger-type metering pump suitable for injecting chemicals up to 32.0 MPa
Ideal for boiler chemical injection and chemical injection into high pressure processes
Can be replaced with an inverter motor
Supports series operation of up to 4 units with one motor
By connecting the drive cranks, up to 4 units can be operated in series.
Supports pulsation-free operation when triplex is used

Specification

Discharge rate: 0.03 to 15.9 L / min
The discharge pressure is rated at – 32.0 MPa
Discharge reproduction accuracy: ± 0.5% less (based on manufacturer’s recommended conditions)
Standard motor: 3-phase 200V 50 / 60Hz 0.75Kw 4P (Available for cheap increase, pressure resistance explosion proof, inverter motor)
Protection class: IP55 indoor specification

pump size	Maximum Discharge pressure	Maximum discharge rate [50Hz]		Number of strokes [50Hz]	Maximum discharge rate [60Hz]		Number of strokes [60Hz]	Inhalation Lift	Connection diameter	Mass
pump size	[MPa]	[l/h]	[l/min]	[spm]	[l/h]	[l/min]	[spm]	[m]	[Rp]	[kg]
320009	32.0	8.7	0.15	72	10.4	0.17	86	4.0	Rp 1/4 (8A)	50
320012	32.0	11.6	0.19	96	13.9	0.23	115	4.0	Rp 1/4 (8A)	50
320014	32.0	14.5	0.24	120	17.4	0.29	144	4.0	Rp 1/4 (8A)	50
320017	32.0	17.4	0.29	144	20.8	0.35	173	4.0	Rp 1/4 (8A)	50
320018	32.0	17.7	0.30	72	21.2	0.35	86	4.0	Rp 1/4 (8A)	50
320024	32.0	23.6	0.39	96	28.3	0.47	115	4.0	Rp 1/4 (8A)	54
320030	32.0	29.5	0.49	120	35.4	0.59	144	4.0	Rp 1/4 (8A)	54
313035	31.3	35.4	0.59	144	42.4	0.71	173	4.0	Rp 1/4 (8A)	54
192033	19.2	32.9	0.55	72	39.4	0.66	86	4.0	Rp 3/8 (10A)	55
192044	19.2	43.9	0.73	96	52.6	0.88	115	4.0	Rp 3/8 (10A)	55
192055	19.2	54.8	0.91	120	65.7	1.10	144	4.0	Rp 3/8 (10A)	55
168066	16.8	65.8	1.10	144	78.9	1.32	173	4.0	Rp 3/8 (10A)	55
113057	11.3	57.5	0.96	72	69.0	1.15	86	4.0	Rp 3/8 (10A)	56
113077	11.3	76.6	1.28	96	91.9	1.53	115	4.0	Rp 3/8 (10A)	56
113096	11.3	95.8	1.60	120	114.9	1.92	144	4.0	Rp 3/8 (10A)	56
096115	9.6	114.9	1.92	144	137.8	2.30	173	4	Rp 3/8 (10A)	56
063104	6.3	104.3	1.74	72	125.1	2.09	86	4	G 1 1/4 (20A)	58
063139	6.3	139.0	2.32	96	166.8	2.78	115	4	G 1 1/4 (20A)	58
063174	6.3	173.8	2.90	120	208.5	3.48	144	4	G 1 1/4 (20A)	58
052208	5.2	208.5	3.48	144	250.2	4.17	173	4	G 1 1/4 (20A)	58
040163	4.0	162.9	2.72	72	195.4	3.26	86	4	G 1 1/4 (20A)	58
040217	4.0	217.2	3.62	96	260.6	4.34	115	4	G 1 1/4 (20A)	58
040271	4.0	271.5	4.53	120	325.8	5.43	144	4	G 1 1/4 (20A)	58
033326	3.3	325.8	5.43	144	390.9	6.52	173	4	G 1 1/4 (20A)	58
028237	2.8	237.0	3.95	72	284.4	4.74	86	4	G 1 1/2 (25A)	62
028316	2.8	315.9	5.27	96	379.0	6.32	115	4	G 1 1/2 (25A)	62
027395	2.7	394.9	6.58	120	473.8	7.90	144	4	G 1 1/2 (25A)	62
022474	2.2	473.9	7.90	144	568.6	9.48	173	4	G 1 1/2 (25A)	62
020322	2.0	322.5	5.38	72	387.0	6.45	86	4	G 1 1/2 (25A)	62
020430	2.0	430.0	7.17	96	516.0	8.60	115	4	G 1 1/2 (25A)	62
020538	2.0	537.6	8.96	120	645.1	10.75	144	4	G 1 1/2 (25A)	62
016645	1.6	645.1	10.75	144	774.1	12.90	173	4	G 1 1/2 (25A)	62
014475	1.4	475.1	7.92	72	570.1	9.50	86	4	G 2 1/4 (40A)	68
014634	1.4	634.1	10.57	96	760.9	12.68	115	4	G 2 1/4 (40A)	68
013793	1.3	792.6	13.21	120	951.1	15.85	144	4	G 2 1/4 (40A)	68
011951	1.1	951.1	15.85	144	1,141.3	19.02	173	4	G 2 1/4 (40A)	68
