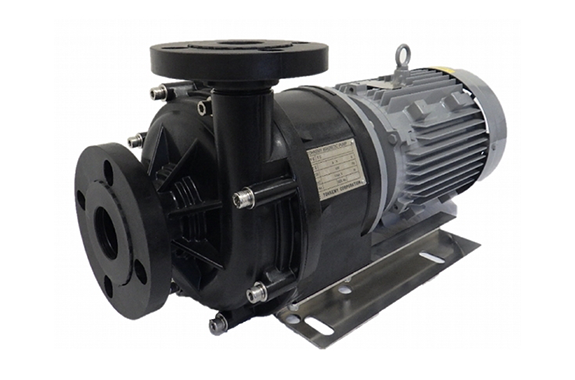

Features
Two kinds of main material, GFR-PP (Glass Fiber Reinforced Polypropylene) _and CFR-ETFE (Carbon Fiber Reinforced ETFE) in high corrosion resistance. Three more materials combinations selectable to wide-range chemicals.
Japan top runner motor outdoor type, saving energy _and space. (Standard efficiency for 0.4kW)
Resin bracket and pump base realizing light weight and high resistance to erosion. (FCD bracket for TSM-C)

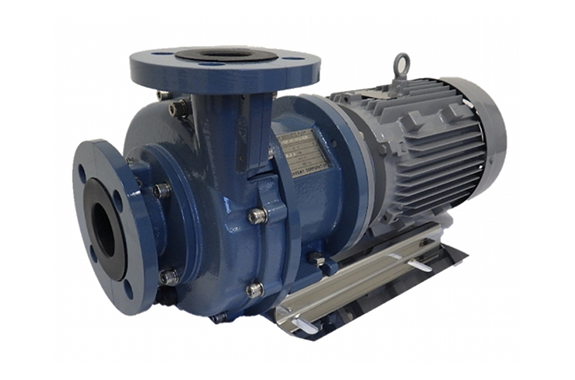

TSM-C is durable with FCD cover.
Specification
| Model | Connection diameter (suction x discharge)(A) | Head (m) | Discharge rate (L/min) | Motor output (kW) | Weight (P ・E/C) (kg) |
|---|---|---|---|---|---|
| TSM-100P/E | 25×25 | 12 | 50 | 0.4 | 13.5 |
| TSM-110P/E | 25×25 | 20 | 50 | 0.75 | 21 |
| TSM-201P/E/C | 40×40 | 8 | 130 | 0.4 | 13.5 / 22.7 |
| TSM-211P/E/C | 40×40 | 12 | 180 | 0.75 | 21 / 30.4 |
| TSM-221P/E/C | 50×40 | 16 | 260 | 1.5 | 29.5 / 44.7 |
| TSM-231P/E/C | 50×40 | 22 | 300 | 2.2 | 35 / 50.1 |
| TSM-241P/E/C | 50×40 | 32 | 300 | 3.7 | 43 / 62.3 |
| TSM-251P/E/C | 65×50 | 22 | 500 | 3.7 | 43 / 63.4 |
| TSM-261P/E | 65×50 | 14 | 480 | 2.2 | 36 |
* Indication of minimum discharge rate is approx. 10% of maximum discharge rate at 0m head.
* Discharge connection diameter is 25A for TSM-201C.
External dimensions
| Model | H | L | W | A | B | D | E | F | G | K |
|---|---|---|---|---|---|---|---|---|---|---|
| TSM-100 | 255 | 463 | 160 | 65 | 90 | 115 | 130 | 163 | 130 | 12 |
| TSM-110 | 485 | 171 | ||||||||
| TSM-201 | 225 | 458 | 140 | 54 | 87 | 95 | 110 | 150 | 98 | |
| TSM-211 | 257 | 500 | 160 | 72 | 105 | 115 | 130 | 187 | 130 | |
| TSM-221 | 280 | 535 | 260 | 80 | 90 | 120 | 204 | 159 | 200 | 14 |
| TSM-231 | 558 | |||||||||
| TSM-241 | 322 | 577 | 250 | 162 | 220 | 147 | 300 | |||
| TSM-251 | 331 | 584 | 92 | 153 | ||||||
| TSM-261 | 572 |
* Dimension “L” is for Tohkemy standard motor installed.
* External dimensions _and performance are subject to change without notice.
Model Code Explanation
| 100 | Connection diameter 25A x 25A / 0.4kW |
| 110 | Connection diameter 25A x 25A / 0.75kW |
| 201 | Connection diameter 40A x 40A (25A) / 0.4kW |
| 211 | Connection diameter 40A x 40A / 0.75kW |
| 221 | Connection diameter 50A x 40A / 1.5kW |
| 231 | Connection diameter 50A x 40A / 2.2kW |
| 241 | Connection diameter 50A x 40A / 3.7kW |
| 251 | Connection diameter 65A x 50A / 3.7kW |
| 261 | Connection diameter 65A x 50A / 2.2kW |
| P | Glass Fiber Reinforced Polypropylene |
| E | Carbon Fiber Reinforced ETFE |
| C | Carbon Fiber Reinforced ETFE w/ FCD Cover |
| C | High Density Carbon / High Purity Ceramics |
| R | PTFE / High Purity Ceramics |
| S | SiC / SiC |
| V | FKM |
| E | EPDM |
| A | Aflas ® *6 |
| Z | Others |
| 5 | 50Hz |
| 6 | 60Hz |
| 0 | 1.0 max. |
| 1 | 1.1 max. |
| 2 | 1.2 max. |
| 3 | 1.3 max. |
| 5 | 1.5 max. |
| 9 | 1.9 max. |
| Z | Others*3 |
| T | Tohkemy standard |
| E | Increased-safety type (eG3) |
| D | Explosion-proof type (d2G4) |
| Z | Other special type |
| 2 | 200V-50/60Hz 220V-60Hz |
| 4 | 400V-50/60Hz 440V-60Hz |
| 6 | Others*5 |
specific gravities.

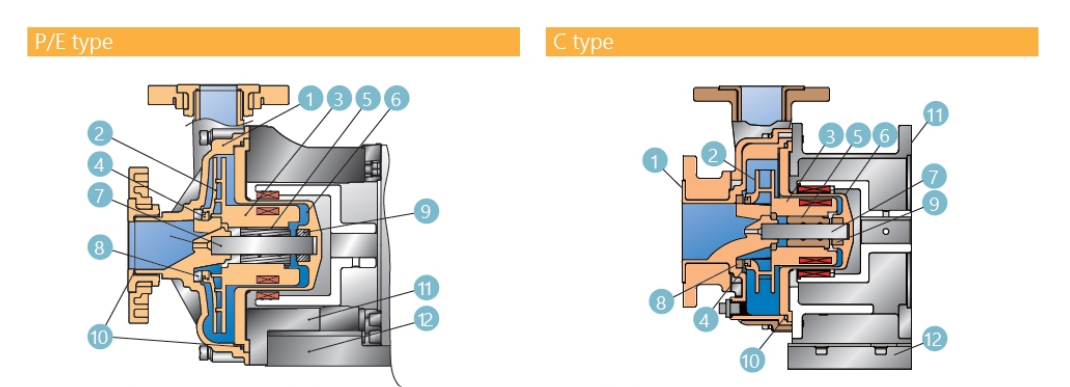

Liquid-end parts specifications
Part name Combination | TSM-P | TSM-E | TSM-C | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| C | R | S | C | R | S | C | R | S | ||
| 1 | Front Casing | Glass Fiber Reinforced Polypropylene | Carbon Fiber Reinforced ETFE | Carbon Fiber Reinforced ETFE w/ FCD Cover | ||||||
| 2 | Impeller | Glass Fiber Reinforced Polypropylene | Carbon Fiber Reinforced ETFE | Carbon Fiber Reinforced ETFE | ||||||
| 3 | Magnetic Can | Polypropylene | Carbon Fiber Reinforced ETFE | Carbon Fiber Reinforced ETFE | ||||||
| 4 | Mouth Ring | PTFE | PTFE | SiC | PTFE | SiC | ||||
| 5 | Bearing | Carbon | PTFE | SiC | Carbon | PTFE | SiC | Carbon | PTFE | SiC |
| 6 | Rear Casing | Glass Fiber Reinforced Polypropylene | Carbon Fiber Reinforced ETFE | Carbon Fiber Reinforced ETFE | ||||||
| 7 | Shaft | High Purity Ceramics | High Purity Ceramics | SiC | High Purity Ceramics | SiC | ||||
| 8 | Front Thrust | High Purity Ceramics | High Purity Ceramics | SiC | High Purity Ceramics | SiC | ||||
| 9 | Rear Thrust | High Purity Ceramics | High Purity Ceramics | SiC | High Purity Ceramics | SiC | ||||
| 10 | O-ring | FKM/EPDM/Aflas® | ||||||||
| 11 | Bracket | Glass Fiber Reinforced Polypropylene | Glass Fiber Reinforced Polypropylene | FCD | ||||||
| 12 | Base * | SUS/Glass Fiber Reinforced Polypropylene | SUS/Glass Fiber Reinforced Polypropylene | SUS304 | ||||||
* Base material: Glass Fiber Reinforced Polypropylene for TSM-241/251P/E, SUS304 for the others.
* Aflas® is a registered trademark of AGC Inc.
