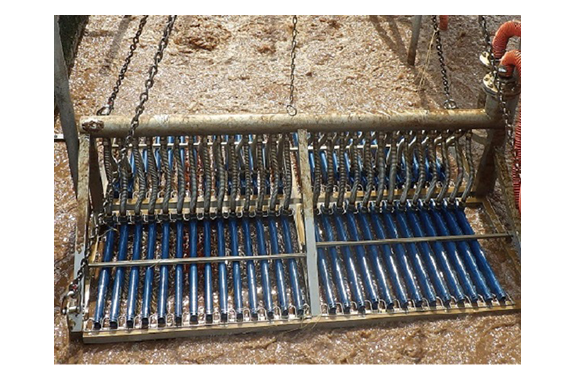

Tohkemy MBR Unit Water Treatment Systems

Manufacturer: Tohkemy Corporation
Model: MBR Unit

Features

Resolve the problems of the wastewater increase with increased production
Changing to the MBR from the installed sedimentation treatment equipment can correspond to them.
Shorten the treatment time and improve efficiency
Filtration under reduced pressure separates solid and liquid and doesn’t need any time for sedimentation and separation.
Besides standard biological treatment aeration vessel has the MLSS as approx.2,000~3,000mg/L, the MBR vessel can make the high concentrated one as approx.8,000~10,000mg/L, which means the efficient biological treatment possible.
The treatment water quality is as good as to be reused.
The SMF membrane nominal pore diameter is 0.05μm, which makes the turbidity of treated water less than 1 degree.
It doesn’t need for sand filtration as the latter part of treatment.

Product Specifications

Model		SMF-PVDF-N05	SMF-PVDF-N20
Membrane Material		PVDF
Nominal Pore Size		0.05μm
Filtration Method		Suction Filtration Method
Membrane Shape		Hollow Fiber (Capillary Type)
Collector Tube Material		ABS
Membrane Area		5m²	20m²
Module Dimensions		W618 × D45 × H890mm	W744 × D40 × H1,622mm
Module Weight		(Dry)2kg (Wet)5kg	(Dry)10kg (Wet)20kg
Design Flow Rate^*1 (m³/h)		0.04〜0.10	0.17〜0.42
Tank Water Quality Guideline		MLSS　8,000〜10,000mg/L
Operating Conditions	Pressure	(Recommended) -35 kPa or higher
	Water Temperature	5〜40°C
	pH	During Operation3〜11 During Chemical Cleaning2〜12

*1 The design treatment capacity varies depending on operating conditions such as raw water quality, water temperature, supply pressure, and backwash conditions. This value is a guideline. Please consult our sales representative during design.
* Please note that oils and silicone-based defoamers may clog the membrane.

Flow Sheet

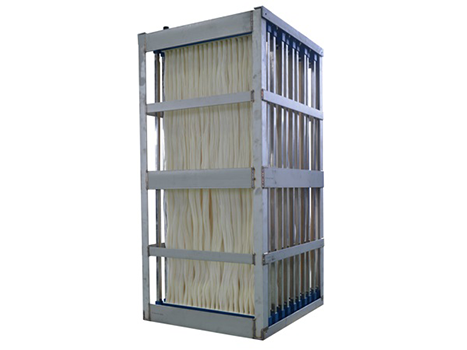

Unit Specifications

Number of Modules	MBR-N05-10 × 1	MBR-N05-10 × 2	MBR-N05-10 × 3	MBR-N20-10 × 1	MBR-N20-10 × 2
Elements	SMF-PVDF-N05 × 10	SMF-PVDF-N05 × 20	SMF-PVDF-N05 × 30	SMF-PVDF-N20 × 10	SMF-PVDF-N20 × 20
Membrane Area (m²)	50	100	150	200	400
Standard Treatment Capacity (m³/d) *	20	40	60	80	160
Blower Capacity (m³/min)	0.35	0.73	1.08	0.89	1.82
Equipment Model	1Unit	2Unit	3Unit	1Unit	2Unit
Approximate Dimensions (m)	W2.0 × 1.9L × 2.4H	W2.0 × 3.2L × 2.4H	W2.0 × 4.5L × 2.4H	W2.0 × 2.1L × 3.4H	W2.0 × 3.6L × 3.4H
