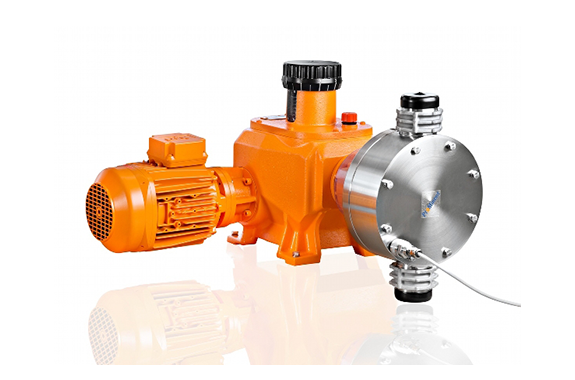

Tohkemy Macro TZ Direct Motion Type Chemical Pump

Manufacturer: Tohkemy Corporation
Model: Macro TZ Direct Motion Type

Features

Compatible with two types of linear diaphragm / plunger
Compatible with PTFE diaphragm type and plunger type for high pressure discharge
We provide the optimum application according to the intended use.
Diaphragm damage detection is standard equipment
Equipped as standard with a multi-layer diaphragm with excellent safety and diaphragm damage detection that sends a signal in the unlikely event that the diaphragm is damaged.
Contributes to stable operation of continuous processes
Supports series operation of up to 4 units with one motor
By connecting the drive cranks, up to 4 units can be operated in series.
Supports pulsation-free operation when triplex is used

Specification

Discharge rate: 0.6 to 35.0 L / min
The discharge pressure is rated at – 1.2 MPa
Discharge reproduction accuracy: ± 2.0% less (based on manufacturer’s recommended conditions)
Standard motor: 3-phase 200V 50 / 60Hz 0.75Kw 4P (Available for cheap increase, pressure resistance explosion proof, inverter motor)
Protection class: IP55 indoor specification

Pump size	Maximum Discharge pressure	Maximum discharge rate [50Hz]		Number of strokes [50Hz]	Maximum discharge rate [60Hz]		Number of strokes [60Hz]	1 stroke amount	Inhalation Lift	Connection diameter	Mass [kg]
Pump size	[MPa]	[l/h]	[l/min]	[spm]	[l/h]	[l/min]	[spm]	[ml/str]	[m]	[Rp]	Resin/SS
120260	1.2	260	4.3	72	312	5.2	86	60.0	4.0	1 1/2 (25A)	46/54
120340	1.2	340	5.6	96	408	6.8	115	60.0	4.0	1 1/2 (25A)	46/54
120430	1.2	430	7.1	120	516	8.6	144	60.0	4.0	1 1/2 (25A)	46/54
120510	1.2	510	8.5	144	612	10.2	173	60.0	4.0	1 1/2 (25A)	46/54
120650	1.2	640	10.6	180	–	–	–	60.0	4.0	1 1/2 (25A)	46/54
070430	0.7	430	7.1	72	516	8.6	86	99.0	3.5	2 (32A)	50/64
070570	0.7	570	9.5	96	684	11.4	115	99.0	3.5	2 (32A)	50/64
070720	0.7	720	12.0	120	864	14.4	144	99.0	3.5	2 (32A)	50/64
070860	0.7	860	14.3	144	1,032	17.2	173	99.0	3.5	2 (32A)	50/64
071070	0.7	1,070	17.8	180	–	–	–	99.0	3.5	2 (32A)	50/64
040840	0.4	840	14.0	72	1,008	16.8	86	194.0	3.0	2 1/4 (40A)	56/80
041100	0.4	1,100	18.3	96	1,320	22.0	115	194.0	3.0	2 1/4 (40A)	56/80
041400	0.4	1,400	23.3	120	1,680	28.0	144	194.0	3.0	2 1/4 (40A)	56/80
041670	0.4	1,670	27.8	144	2,004	33.4	173	194.0	3.0	2 1/4 (40A)	56/80
042100	0.4	2,100	35.0	180	–	–	–	194.0	3.0	2 1/4 (40A)	56/80

Wet contact material

Name	Wetting part	Suction / discharge valve	Diaphragm	Valve ball	Ball sheet	Valve spring
PPT	PP	PVDF	PTFE	Glass	PTFE	Hast.C + CTFE
PCT	PVC	PVDF	PTFE	Glass	PTFE	Hast.C + CTFE
TTT	PTFE + carbon	PVDF	PTFE	Ceramic	PTFE	Hast.C + CTFE
SST	SUS316	SCS22	PTFE	SUS316	PTFE	SUS316/Hast.C
