Tohkemy Corporation

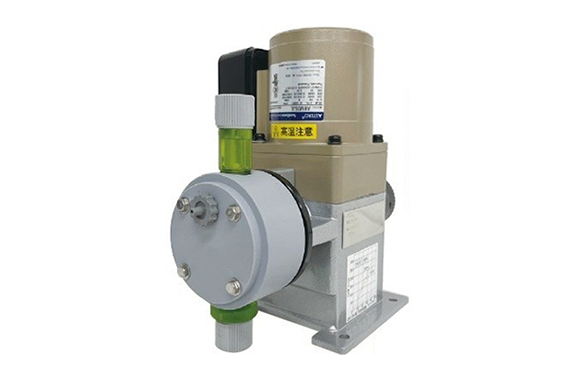

Tohkemy CM-V Chemical Pump
Manufacturer: Tohkemy Corporation
Model: CM-V
Features
Compact Design (Smallest in CM Series)
The CM-V delivers high discharge accuracy in a compact footprint using 25W or 60W motors.
Motor & Power Specifications
Voltages: 100V, 110V, 200V, 220V, 230V, 380V, 400V, 415V, 440V (Standard & Semi-standard).
Enclosure: TESC or TEFC indoor flange type. Use the included motor cover for outdoor installation (keep out of direct sunlight).
Limitations: Non-explosion-proof; custom paint colors are not supported.
Included Accessories
All Models: Motor cover, basic tools.
Hose Specifications (CM-1V to 25V, VVFC & VVF4): Air release pump + standard flow indicator.
Hose Specifications (Excluding φ15 x φ22): Check valve, foot valve.
Specifications
| Model | Discharge rate (ml/min) at 0.1MPaG | Max. discharge rate at the max. discharge pressure (ml/min) | Max. discharge pressure (MPaG) | Diameters of Pump head / Diaphragm (mm) | Stroke frequency (spm) / Reduction ratio | Max. stroke length (mm) | Motor (W) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60(Hz) | 50(Hz) | 60(Hz) | 50(Hz) | 60(Hz) | 50(Hz) | Hose | Flange | |||||
| 1V | 2.4-12 | 2-10 | 10 | 8 | 1.0 | φ70/ φ39 | 8/1:180 | 7/1:180 | 3 | 25 | Approx. 4.0 | Approx. 4.3 |
| 2V | 4.8-24 | 4-20 | 19 | 16 | 16/1:90 | 14/1:90 | ||||||
| 6V | 14.4-72 | 12-60 | 70 | 55 | 50/1:30 | 41/1:30 | ||||||
| 8V | 20-100 | 16-80 | 75 | 58 | φ70/ φ49 | |||||||
| 25V | 60-300 | 50-250 | 260 | 210 | 120/ 1:12.5 | 100/ 1:12.5 | ||||||
| 50V | 120-600 | 100-500 | 300 | 250 | 0.5 | φ110/ φ90 | 51/1:30 | 43/1:30 | 4 | 60 | Approx. 7.8 | Approx. 8.1 |
| 80V | 200-1000 | 160-800 | 650 | 500 | 86/1:18 | 72/1:18 | ||||||
| 130V | 320-1600 | 260-1300 | 1250 | 1010 | 6 | |||||||
*The discharge rate was calculated at discharge pressure of 0.1MPaG, suction head of -0.01MPaAq equivalent to the same pipe diameter as in the pump; and normal temperature using clear water.
Under standard specifications, please operate with an ambient temperature of 0 to 40°C, handling liquid temperature of 0 to 50°C,and an NPSH requirement of approximately 0.06 MPa Abs.
Common specifications
| Connection | Hose | CM-1V～25V: φ4 x φ9 _or φ4 x φ6, CM-50V/80V: φ6 x φ11, φ6 x φ9 _or φ15 x φ22, CM-130V: φ15 xφ22, CM-1V～25V-XV46: φ6 x φ11 CM-50V/80V-VV46: φ15 x φ22 |
|---|---|---|
| Flange | 15A JIS10KF 13A union joint | |
| Motor | Standard | Three-phase, 4P, Insulation class B, 60Hz (200/220/230V), 50Hz (200/220V), 25W: Totally-enclosed self-cooled indoor flange type 60W: Totally-enclosed external fan indoor flange type |
| Semi-standard | Three-phase, 4P, Insulation class B, 60Hz (380/400/415/440V), 50Hz (380/400/415/440V), 25W: Totally-enclosed self-cooled indoor flange type, 60W: Totally-enclosed external fan indoor flange type | |
| Single-phase, 4P, Insulation class B, 60Hz (100/110V), 50Hz (100V), or 60Hz (200/220V), 50Hz (200V) 25W: Totally-enclosed self-cooled indoor flange type, 60W: Totally-enclosed external fan indoor flange type | ||
| Reducer | Spur-gear multistage combination mechanism | |
| Standard accessories | Motor cover set (w/ mounting stay, set screws) 1 set Simple tools (Hexagonal wrench) Hose 4m (for CM-1V～80V hose spec. ・ Excluding φ15 × φ22) Air extract hose (PE hose 1m) (for CM-1V-25V-VVFC/VVE4) Pump mounting bolts _and nuts M6 × 35L 4 sets Instruction manual Foot valve (Hose spec. only ・ Excluding φ15 × φ22) Check valve (Hose spec. only ・ Excluding φ15 × φ22) Air extract pump | |
| Color | For motor _and reduction gear parts: Astero silver, similarly Munsell 2.5Y6.5/1.5, For driving parts: Silver | |
Liquid-end parts specifications
| part name/Combination | VVFC | VVE4 | XV46（1V-25V） VV46（50V-130V） | |||
|---|---|---|---|---|---|---|
| Applicable chemicals | Sodium hypochlorite Ferric chloride, PAC Sulfate band, ferrous sulfate Ferric sulfate | Hydrochloric acid / dilute sulfuric acid Other strong acids | Sodium hydroxide | Ammonia water | Polymer flocculants | |
| Pump head | PVC | PVC | PVC | |||
| Diaphragm | PTFE | PTFE | PTFE | |||
| Connector | PVC | PVC | PVC | |||
| Valve seat | FKM | EPDM | – | |||
| Check ball | Ceramics | SUS304 | SUS304 | |||
| Spring | – | – | SUS316 | |||
| O-ring, Gasket | Aflas® | Aflas® | φ70 / PTFE φ110 / Aflas® | |||
| Connection | Hose | φ4×φ9mm、φ6×φ11mm、 φ15×φ22mm Braded soft PVC hose | φ4×φ6mm、φ6×φ9mm PE hose | φ4×φ6mm、φ6×φ9mm PE hose | φ4×φ9mm、φ6×φ11mm、 φ15×φ22mm Braded soft PVC hose | φ6×φ11mm、φ15×φ22mm Braded soft PVC hose |
| Flange | 15A JIS 10K Flange | |||||
The corrosion resistance of the material varies depending on the temperature and concentration of the liquid, so the above examples are for reference only.
Aflas® is a registered trademark of AGC Inc.
There are two types of connection hoses, so please specify the name of the liquid used or the hose size when making your selection.
Viscosity of fluid
Refer to the chart below for transferring high-viscous fluid such as Polymer flocculants.
| Model | Connection | ||
|---|---|---|---|
| φ6×φ11mm hose | φ15×φ22mm hose | 15A Flange | |
| CM-1V | 50mPa・s max. | — | 50mPa・s max. |
| CM-2V〜8V | 200mPa・s max. | — | 300mPa・s max. |
| CM-25V | 80mPa・s max. | — | 300mPa・s max. |
| CM-50V/80V | Not used | 500mPa・s max. | 500mPa・s max. |
| CM-130V | Not used | 500mPa・s max. | 500mPa・s max. |
※ The pump discharge rate varies depending on the liquid viscosity and slurry. Please note that the pump performance values are based on data with clean water. When using a viscous liquid, please use a press-in piping.

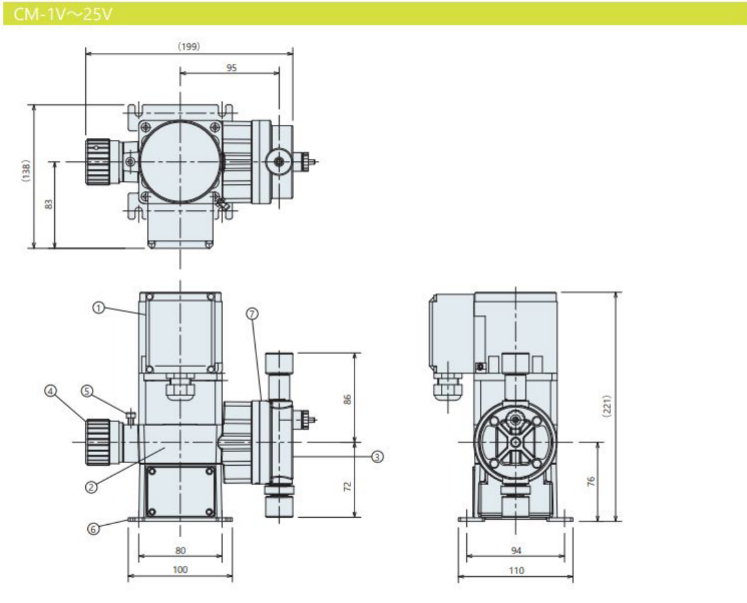

Pump Dimensions

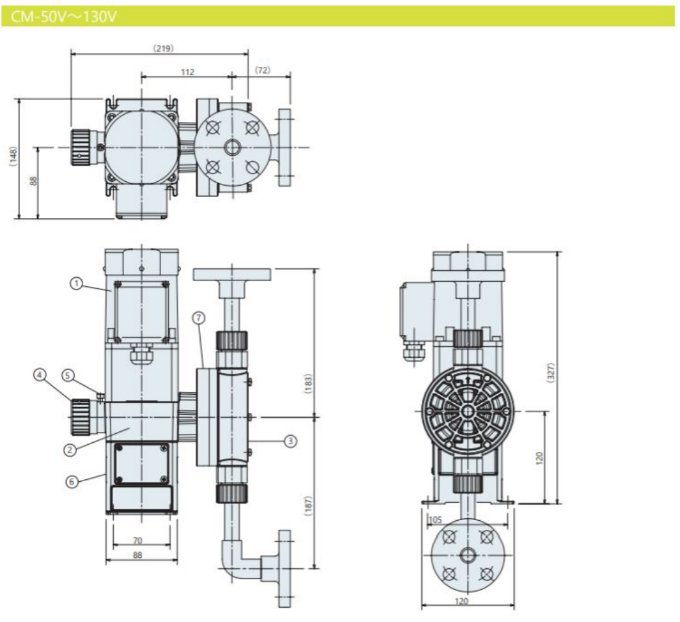

CM-50V～130V
| P/N | Part name |
|---|---|
| 1 | Motor |
| 2 | Reducer |
| 3 | Liquid-end parts |
| 4 | Flow rate control dial |
| 5 | Dial set bolt |
| 6 | Pump base |
| 7 | Sub-ring |

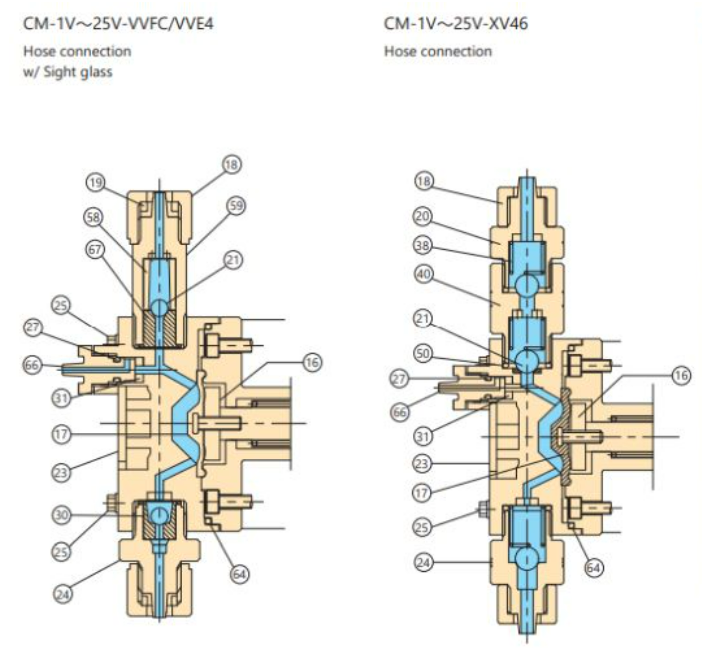

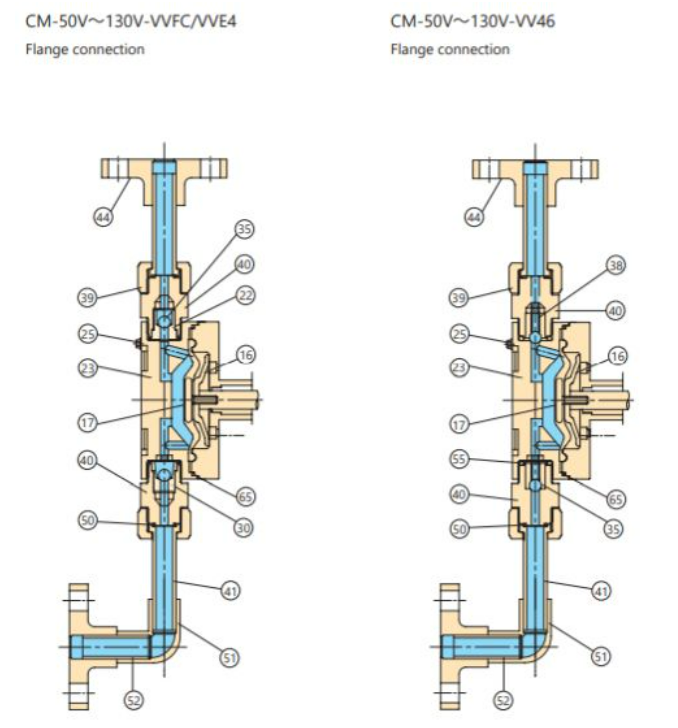

Liquid-end parts construction
| P/N | Part name |
|---|---|
| 16 | Diaphragm washer |
| 17 | Diaphragm |
| 18 | Hose lock nut |
| 19 | Hose lock ring |
| 20 | Discharge-side 1st stage connector |
| 21 | Check ball |
| 23 | Pump head |
| 24 | Suction-side connector |
| 25 | Pump head mounting bolt |
| 27 | O-ring |
| 30 | Suction-side valve seat |
| 31 | Gasket |
| 38 | Spring |
| 40 | Discharge-side 2nd stage connector |
| 50 | O-ring |
| 58 | Float guide |
| 59 | Sight glass case |
| 64 | O-ring |
| 66 | Air extract plug |
| 67 | Discharge-side valve seat |
