Manufacturer: Tohkemy Corporation

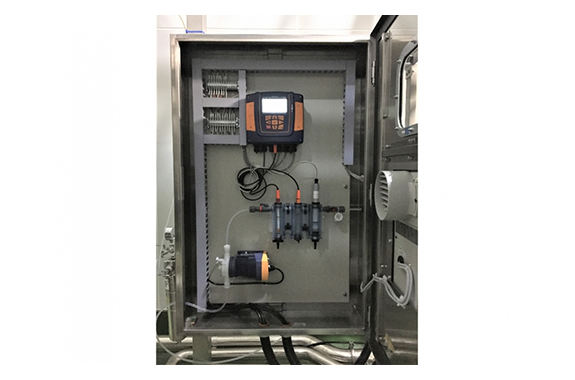

Model: Peracetic Acid Measuring / Monitoring Unit
Features
The sensor adopts a diaphragm polarographic type, which is excellent in high stability and cost performance.
Septal type with excellent maintainability
Working in direct synchronization with the ProMinent dosing pump, the controller automatically adjusts peracetic acid (PAA) concentrations to maintain precise sanitizer dosing across varying line speeds and fluid volumes.
Equipped with a data log function to SD card as standard
Use
Monitoring and adjustment of concentration of peracetic acid diluted water
Surface cleaning, sterilization, and peeling aids for vegetables and fruits
Surface sterilization of meat and poultry
Disinfection and disinfection of facilities, tools, and food contacts
Peracetic acid is a fungicide that has been attracting new attention in the food industry.
Since its approval was registered by the US FDA in 1986, it has been used for cleaning artificial dialysis machines and endoscopes in Japan as well.
Since 2016, it has been approved for use in food surface sterilization and is spreading rapidly.
Specification
| Measurement range | Acetic peracid “1-200mg/L” “10-2000mg/L” “25-5000mg/L” “50-10000mg/L” empty choice
Water temperature: 1-45 ° C, pH range: 1-9, maximum pressure: 0.3MPa |
|---|
| control | P / PID control |
|---|
| output | Pulse output: For Prominent pump x 4
Analog output: 0 / 4-20mA DC measured value output x 3
Upper and lower limit alarm output x 2, instrument batch failure output x 1 |
|---|
| Record | Data log function by SD card (CSV format) |
|---|
| Power supply | 100 ～ 230VAC ±10% 50/60Hz |
|---|
| Other | With SUS cover + cooler, aluminum cover can also be manufactured |
|---|
* A pH sensor and temperature sensor can be added upon request.
