Tohkemy SMF Cassette System Water Treatment Systems

Manufacturer: Tohkemy Corporation
Model: SMF Cassette System

Features

Achieves high flux by special membrane formation
Flux: Approximately 4 times compared to the conventional products.
Achieves excellent washing ability by using water and air together
Achieves effective turbidity discharge by bubbling and backwashing with permeated water.
Capable of removing Cryptospodium and Legionella
Since SMF-PVDF has a nominal pore size of 0.05 μm, it is possible to remove Cryptosporidium and Giardia, which are the enemies of drinking water, and Legionella, which is the enemy of hot bath facilities and cooling towers.

Applications

Decontamination and infection control for water and beverage facilities
Circulation and Filtration for Hot Bath Facilities and Pools
Pretreatment of RO membrane equipment
Aseptic seawater production* [fishery processing]
*Pretreatment may be required.

Product Specifications

Model		SMF-PVDF
Membrane Material		PVDF(Polyvinylidene Fluoride)
Nominal Pore Size		0.05μm
Membrane Area		2.2m²
Filtration Method		External Pressure Full-Flow Filtration Method
Membrane Shape		Hollow Fiber (Capillary Type)
Cassette Material		Polycarbonate
Cassette Dimensions		W 356mm × D 90mm × H 450mm
Cassette Weight		(Dry)4kg　　(Wet)8kg
Connection Specifications		TS Connection(25A, 40A)
Operating Conditions	Pressure	0~0.2MPa
	Water Temperature	5~40°C
	pH	During Operation : 3~10 During Chemical Cleaning : 2~11
Fresh Water Filtration Capacity^*1		1.52
Design Filtration Capacity^*2 (m³/h) Water Temperature of 25°C.	Fresh Water System	0.22~0.42
	Seawater System	0.29~0.39
	Pool Circulation Water	0.28~0.55

*1 Calculated based on the filtration water volume of the test module at a supply pressure of 0.2 MPa and water temperature of 25℃.
*2 The filtration flow rate varies depending on operating conditions such as raw water quality, water temperature, supply pressure, and backwash conditions. This value is a guideline. Please consult our sales representative during the design phase.
Furthermore, conducting a membrane filtration test using the actual raw water allows for determining the precise design filtration flow rate, backwash conditions, and other operating parameters. We offer membrane filtration testing for a fee.
*3 This refers to seawater after pretreatment, such as sand filtration.

Flow Sheet

Specifications

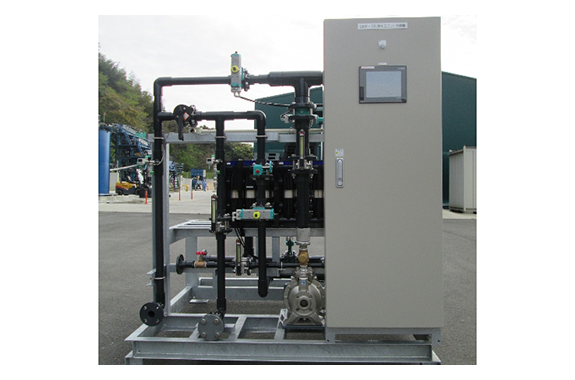

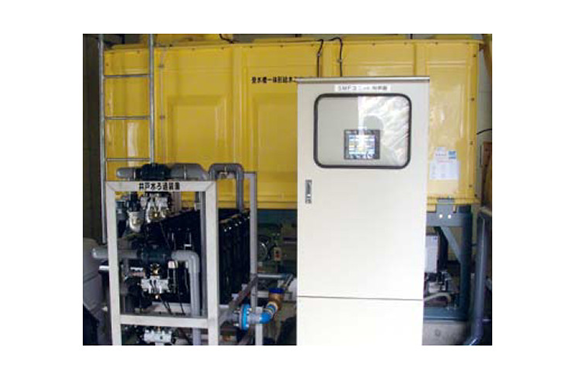

Number of Cassettes	2〜4	6	8〜12	14〜18
Membrane Area(m²)	0.44〜0.88	13.2	17.6〜26.4	30.8〜39.6
Standard Processing Capacity(m³/h)	0.6〜1.3	1.9	2.6〜3.8	4.5〜5.8
Compressor(kW)	0.2〜0.4	0.4	0.75	1.5
Air Tank(L)	Approx.20	Approx.40	Approx.80	Approx.120
Unit Type	Package type	Package type	Unit type	Unit type
Approximate Dimensions(m)	0.6 × 1.3 × H1.6	0.6 × 1.7 × H1.6	1.5 × 1.7 × H1.9	1.7 × 1.7 × H1.9
Backwash Water Tank(L)	200(included)	200(included)	Not included	Not included
