The standard blade is 2 stages of 2-blade pitched paddle , but the blade shape may be changed depending on mixing purpose and specifications.
Please contact us for detailed specifications and dimensions.
Tohkemy Corporation

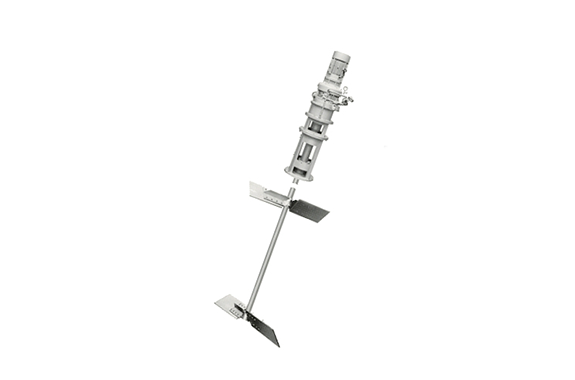

Tohkemy Vertical Large NTV Agitator And Tank
Manufacturer: Tohkemy Corporation
Model: Vertical Large NTV
Features
Corresponds to changes in the purpose of agitation such as viscosity fluctuations
Supports a wide range of capacities from small to large (output: 0.4k – 11 kW)
Due to use a Beier cyclo variator, an optimum rotation speed can be adjusted.
Specification
| Rotation speed(min-1) | Power(kW) | |||||
|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 0.4 | 0.75 | 1.5 | 2.2 | 3.7 |
| 50～200 | 60～240 | ◯ | ◯ | ◯ | ◯ | — |
| 37～150 | 45～180 | ◯ | ◯ | ◯ | ◯ | ◯ |
| 23～92 | 28～111 | ◯ | ◯ | ◯ | ◯ | ◯ |
| 14～57 | 17～69 | ◯ | ◯ | ◯ | ◯ | ◯ |
| 10～41 | 12～50 | ◯ | ◯ | ◯ | ◯ | ◯ |
| 7～28 | 8～33 | ◯ | ◯ | ◯ | ◯ | ◯ |
| 5～20 | 6～24 | ◯ | ◯ | ◯ | ◯ | ◯ |
| Maximum agitating capacity(m3) | Dilute liquid | 2.5 | 5 | 10 | 15 | 25 |
| Medium viscosity liquid | 0.6 | 1.3 | 3 | 6 | 10 | |
In addition, model from a wide range up to 11kW, 3.4~360min-1 can be selected.
