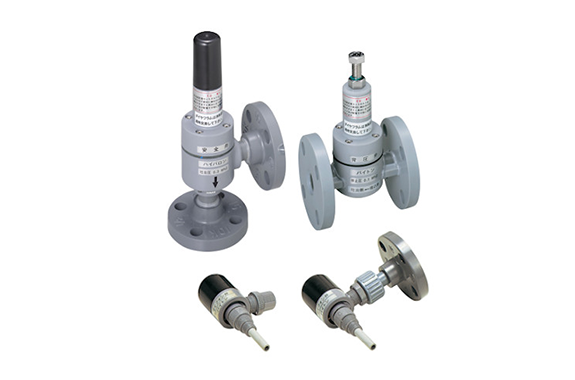

Tohkemy Relief Valve Back Pressure Valve And Anti Siphonage Valve Pump Accessories

Manufacturer: Tohkemy Corporation
Model: Relief Valve Back Pressure Valve And Anti Siphonage Valve

Part description

Relief valve
Prevents system damage (air chamber, pump, pipes) caused by dead-head operation if the discharge valve is closed or blocked. It opens automatically at a preset pressure. Protect the line against freezing risks.
Installation Note: Mount above the tank’s liquid level when returning chemicals. Ensure the discharge outlet is vented to the atmosphere to prevent secondary backpressure from reducing the set pressure.
Back-Pressure Valve
Prevents over-feeding and pulsating flow caused by insufficient differential pressure between suction and discharge sides. Applying discharge backpressure seats the pump’s check ball tightly, stabilizing the flow rate.
Anti-Siphon Valve
Prevents self-discharge (siphoning) when the discharge-side pressure is lower than the suction side.

Outline drawing / model

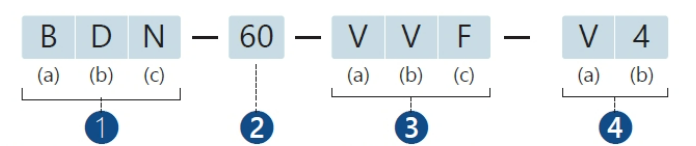

Valve code explanation1: Model

(a)	R: Relief Valve,
	B: Back-pressure Valve,
	S: Anti-siphonage Valve
(b)	D: Diaphragm type,
	B: Ball type,
	C: Cone type
(c)	N: Molded type,
(c)	S: Straight type

2: External dimensions

45	φ45mm
60	φ60mm
80	φ80mm
100	φ100mm
120	φ120mm
140	φ140mm

3: Material

a: Body lower part

V	PVC
4	SUS 304
6	SUS 316
9	SUS 316L
Z	Others

b: Body upper part

V	PVC
4	SUS 304
6	SUS 316
9	SUS 316L
Z	Others

c: Diaphragm

F	FKM
N	Hypalon
Z	Others

4: Connection

a: Connection		b: Nominal diameter(mm)
F	JIS10K flange	15/20/25/40/50/65
A	ANSI 150Lb flange	15/20/25/40/50/65
U	Union joint	13
V	Bladed soft PVC hose	4/6 (Inner diameter)
P	Polyethylene hose	4/6 (Inner diameter)
Z	Others	–

Name	Model	Outside diameter φ(mm)	Max. flow rate (l/min)	Material		Setting pressure range (MPaG)	Installation angle	Connection H: Hose, F: Flange (JIS 10K) Rc: Female screw R: Male screw	Applicable pumps	Weight PVC/SUS Approx. (kg)	External dimensions
Name	Model	Outside diameter φ(mm)	Max. flow rate (l/min)	Body	Diaphragm	Setting pressure range (MPaG)	Installation angle		Applicable pumps	Weight PVC/SUS Approx. (kg)	External dimensions

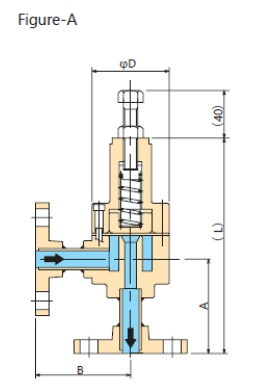

Relief Valve Back-pressure Valve Anti-siphonage Valve	RDN BDN SDN	60	4	PVC or SUS	FKM or Hypalon	0.06 ～ 0.5	90°	F15A or F20A	100W・200W・1～130V・ 3G～350G・Y・4R・1L・2L	1.0 / 3.5	Figure-A
	RD BD SD	80	10					F20A or F25A	500W・500G・700G・6R・9R・6L	1.4 / 7.0
		100	25					F25A or F40A	1000W・1500W・14R～22R・9L・13L・17L	2.0 / 10
		120	40					F40A or F50A	27R・34R・D-32R	3.0 / 16
		140	80					F50A or F65A	D-44R～D-68R	4.6 / 22

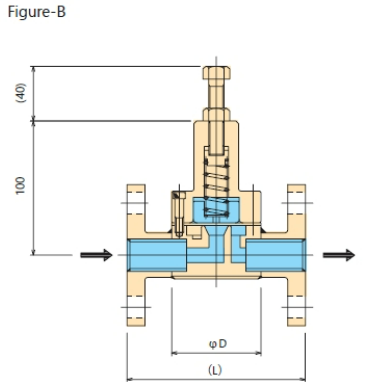

Relief Valve Back-pressure Valve Anti-siphonage Valve	RDS BDS SDS	60	4			0.06 ～ 0.5	180°	F15A or F20A	100W・200W・1～130V・ 3G～350G・Y・4R・1L・2L	1.0 / 3.5	Figure-B
Relief Valve Back-pressure Valve Anti-siphonage Valve	RDS BDS SDS	80	7			0.06 ～ 0.5	180°	F20A or F25A	500W・200G～700G,4R・6R,1L～6L	1.4 / 7.0	Figure-B

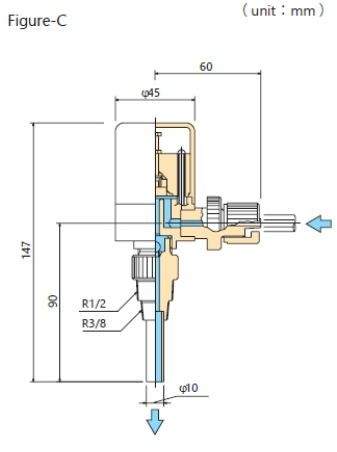

Anti-siphonage Valve	SCN	45	1.2			0.06 ～ 0.1	90°	Liquid inlet: V or Pφ4,φ6 U13, F15 Liquid outlet: R3/8・1/2	100W・1～80V・3G～100G・Y	0.4/—	Figure-C

Notes

1) Setting pressure depend on types: Initial blow-off pressure for Relief Valve, Blow-off pressure for Back-pressure Valve, Shut-off pressure for Anti-siphonage Valve

2) Ambient temperature: 0 to 40℃, Liquid temperature: 0 to 50℃

3) Set the pressure respectively for the double head type pumps.
External dimensions
