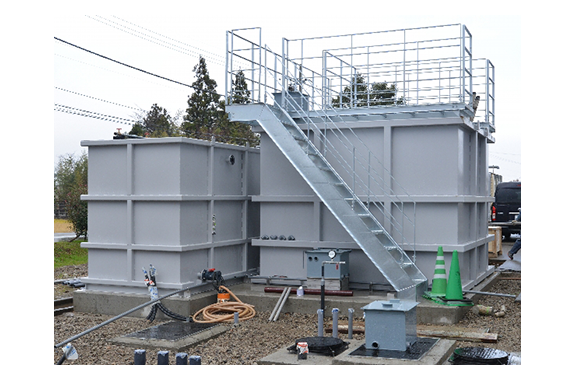

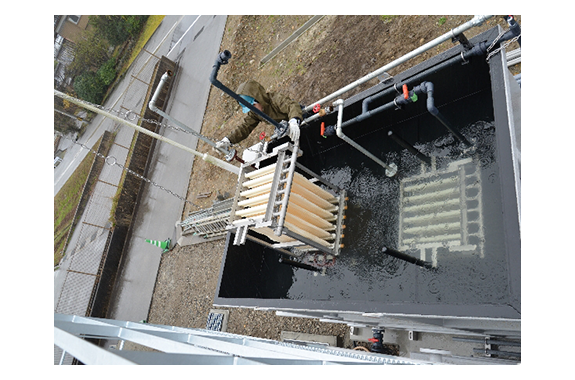

Tohkemy SMF Naked System Water Treatment Systems

Tohkemy SMF Naked System Water Treatment Systems

Manufacturer: Tohkemy Corporation
Model: SMF Naked System

Features

Small installation scale and space saving
By a large membrane area with 20m²/module, the entire space for equipment can be smaller.
Corresponding to the increase in treated water volume
By installing to existing water purification facilities, it can correspond to the increase in treated water volume.
Stable treated water quality
Stable treated water quality can be ensured even if the quality of raw water deteriorates during rainfall in rivers.
Enables water recycle
A PVDF membrane with a nominal pore size of 0.05 μm provides clear treated water that can be used directly as miscellaneous water.

Applications

A water purification facility with raw water of a river which turbidity rises sharply when it rains.
Improvement of water recovery rate by concentrating and collecting backwash wastewater from the filter
Improvement of water quality in existing water purification facilities
Recycling wastewater such as miscellaneous wastewater

Product Specifications

Model		SMF-PVDF-N05	SMF-PVDF-N20
Membrane Material		PVDF
Nominal Pore Size		0.05μm
Filtration Method		Suction Filtration Method

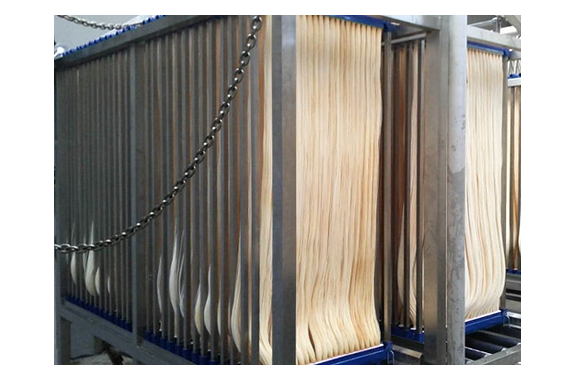

Membrane Shape		Hollow Fiber (Capillary Type)
Collector Pipe Material		ABS
Membrane Area		5m²	20m²
Module Dimensions		W618 × D45 × H890mm	W744 × D40 × H1,622mm
Module Weight		(Dry)2kg　　(Wet)5kg	(Dry)10kg　　(Wet)20kg
Design Flow Rate^*1 (m³/h)		0.13~0.21	0.50~0.83
Tank Water Quality Guideline		Suspended Solids　800~1,000mg/L
Operating Conditions	Pressure	(Recommended) -35 kPa or higher
	Water Temperature	5~40°C
	pH	During Operation3~11　　During Chemical Cleaning2~12

*1 Design flow rate varies depending on operating conditions such as raw water quality, water temperature, supply pressure, and backwash conditions.
This value is a guideline. Please consult our sales representative during design.
* Please note that oils and silicone-based defoamers may clog the membrane.
Unit Specifications

Number of Modules	IMF-N05-10 × 1	IMF-N05-15 × 1	IMF-N05-10 × 2	IMF-N05-15 × 2	IMF-N20-10 × 1	IMF-N20-10 × 2
Elements	SMF-PVDF-N05 × 10	SMF-PVDF-N05 × 15	SMF-PVDF-N05 × 20	SMF-PVDF-N05 × 30	SMF-PVDF-N20 × 10	SMF-PVDF-N20 × 20
Membrane Area (m²)	50	75	100	150	200	400
Standard Treatment Capacity (m³/h) *	1.7	2.6	3.4	5.2	6.7	13.4
Blower Capacity (m³/min)	0.35	0.55	0.73	1.08	0.89	1.82
Equipment Type	1Unit	1Unit	2Unit	2Unit	1Unit	2Unit
Approximate Dimensions (m)	1.2 × 1.5 × H2.5	1.2 × 1.9 × H2.5	1.2 × 2.8 × H2.5	1.2 × 3.5 × H2.5	1.4 × 1.5 × H3.4	1.4 × 2.8 × H3.4
