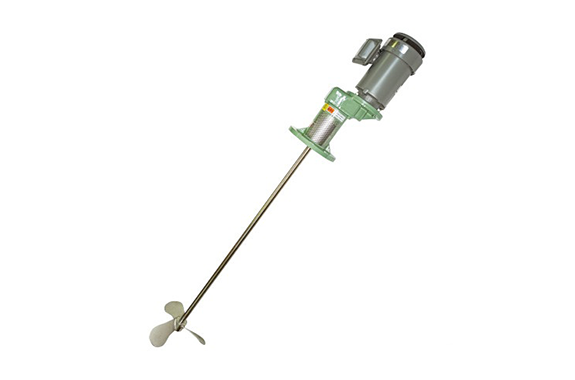

Tohkemy Vertical Small NTA Agitator And Tank

Manufacturer: Tohkemy Corporation
Model: Vertical Small NTA

Features

Compact and lightweight model that supports small capacity agitation
Smooth operation with the helical gear made of MC nylon.
Maintenance-free for the reduction parts having a sealed structure filled with grease.

Standard specifications (gear-reduction)

Model No.	Power		Rated speed (min^-1)		3-blade propeller		Shaft (mm)		Maximum capacity (m³)
Model No.	Output (kW)	Number of poles (P)	50Hz	60Hz	Impeller diameter φD	Number of stages S	Shaft diameter φd	Standard length L	Dilute liquid	Medium Viscosity liquid
NTA4-001	0.1	4	300	360	200	1	16	800	0.6	0.2
NTA4-002	0.2				250	1	19	1,000	1.2	0.4
NTA4-004	0.4				300	1	22	1,200	2.4	0.8
NTA4-007	0.75				350	1	25	1,500	4.5	1.5
NTA4-015	1.5				350	2	30	1,650	8.5	3.0
NTA4-022	2.2				400	2	35	1,800	13	5.0

Totally-enclosed fan-cooled outdoor motor made by Hitachi is used as standard. (Totally-enclosed non-ventilated outdoor type for 0.1kW)
For 100V , only 0.1kW outdoor specifications are manufactured.
Possible to assemble the propellers with 2 stages for the models of 1 stage. (The diameter of propellers shall be smaller in case of 2 stages than the standard 1 stage.)
Possible to assemble the shaft seal for 0.2kW or larger models.
Possible to assemble the 6P motor for 0.4kW or larger models. Please contact us for further information.
Racing (no-load operation) is strictly prohibited.
The viscosity of dilute liquid is less than 0.1 Pa · s (100 cP), and medium-viscosity liquid is about 0.1 to 0.5 Pa · s (100 to 500 cP).

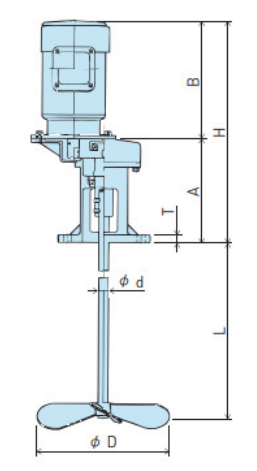

Dimension table

Model No.	Mounting flange dimensions (mm)					Approximate main dimensions (mm)			Approximate equipment weight (kg)
Model No.	Similarly JIS 10K	Outer diameter OD	Pitch Circle Diameter PCD	Number of mounting bolts × hole diameter n×φh	Flange thickness T	H	A	B	Approximate equipment weight (kg)
NTA4-001	65A	175	140	4-φ15	14	390	195	195	13
NTA4-002	65A	175	140	4-φ15	14	417	195	222	15
NTA4-004	100A	210	175	4-φ19	16	478	222	256	20
NTA4-007	125A	250	210	4-φ19	18	563	280	283	33
NTA4-015	125A	250	210	4-φ19	18	609	307	302	45
NTA4-022	200A	330	290	6-φ23	20	809	476	333	95

Common specification items

Motor	3-phase 200V 50Hz, 200 / 220V 60Hz 0.1kW: Totally-enclosed non-ventilated ,0.2kW ~: Totally-enclosed fan-cooled Single-phase 100V 50 / 60Hz: 0.1kW outdoor type only
Standard accessories	Simple tools, instruction manual
Painting	Munsell 2.5G6 / 3 (motor : manufacturer’s standard color)

* Different voltages such as 380/400/440V are also available
