Tohkemy pH / ORP Electrode Water Quality Controller

Manufacturer: Tohkemy Corporation
Model: pH / ORP Electrode

Features

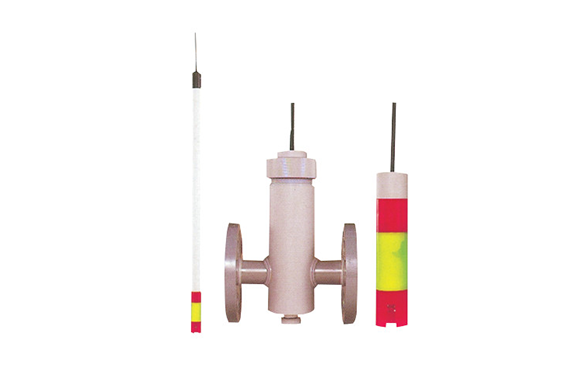

Three types: immersion type / distribution type / immersion type.
Easy electrode replacement and maintenance.
KCl-encapsulated chemi-pack type allows you to check the degree of KCl consumption at a glance.
High temperature specifications of 45 to 80 ° C are also available.
Corresponding instruments: NN-2000 / NN-1000 / NN-100 / NN-110 / NN-200 / NN-210
It can also be connected to the Prominent Dalkometer D1C.

Specification

Model	pH			ORP
	Dipping type	Distribution type	Immersion type	Dipping type	Distribution type	Immersion type
	TCLP	TCCP	TCPP	TCLM	TCCM	TCPM
Measurement range	2～12pH			±1000mV
Operating temperature	0～60℃	0～45℃		0～60℃	0～45℃
Electrode model	TPH			TOR
Holder material	PP	PVC		PP	PVC
Working pressure	0～0.15MPa		–	0～0.15MPa		–
Standard accessories	pH 4/7 standard solution 1 bottle each			Kinhydron powder x 5 bags
option	Mounting bracket (immersion type), relay box, beaker set (200 ml x 3), dedicated cable (2 cores, 4 cores)

Holder material for high temperature (45-80 ℃): SUS304, 316, etc. can also be manufactured.
This product is a single-use type with built-in KCl. It cannot be replenished.

Model

TC	1	2	–	3	4	–	5	6	–	7	–	8	9

1 Holder type	L: Dipping type C: Distribution type P: Immersion type
2 Measurement item	P: for pH M: for　ORP
3 Immersion type holder length (No entry for distribution / implantation type)	05: 500mm 10: 1000mm 15: 1500mm blank
4 Temperature compensation	Blank: None T: Yes (Pt100)
5 Presence　or absence of mounting flange	Blank: None F: Yes (JIS10KF) LF: Loose flange (* Immersion type with flange only)
6 Flange caliber (Only for immersion type with flange　and distribution type. JIS10 KF size)	Blank: No flange 40-100: For immersion type (F) 50-65: For immersion type (LF) 25-80: For distribution type
7 Electrode lead wire length	Blank: Standard 6m 10:10m 20:20m 30:30m
8 Special specifications	Blank: None Z: Special specifications Z4: High temperature holder (SUS304) Z6: High temperature holder (SUS316)
9 Connection instrument specifications	Blank: For Tohkemy Instruments P: For Prominent Instruments (for D1Ca) P2: For Prominent Instruments (for D1Cb / c)
