TOMITA ENGINEERING

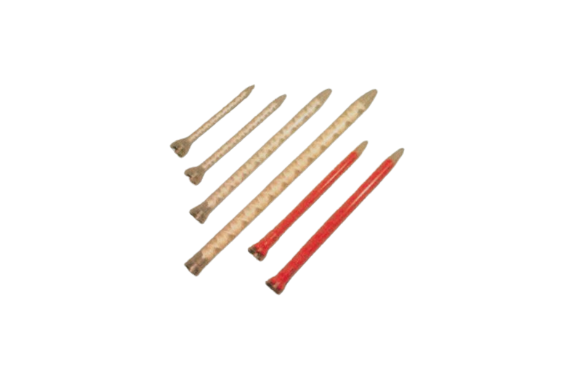

Tomita Engineering Static Mixer MC/MCX Series
Manufacturer: Tomita engineering Co.,Ltd.
Model: MC/MCX Series
Feature
- For MC-Plas-Pak/MIXPAX200･400 (1:1/2:1)
- For MCX-MIXPAX200･400 (4:1/10:1)
- Housing : PP, Element : PP
Specifications
| Part Number | Number of elements | Full length | Discharge port inner diameter | Tip shape |
| MC05-18 | 5.0mm x 18 | 121mm | 1.5mm | Step |
| MC05-24 | 5.0mm x 24 | 150 | 1.5 | Step |
| MC05-32 | 5.0mm x 32 | 188 | 1.5 | Step |
| MC06-18 | 6.4mm x 18 | 149 | 1.8 | Step |
| MC06-24 | 6.4mm x 24 | 185 | 1.8 | Step |
| MC06-32 | 6.4mm x 32 | 235 | 1.8 | Step |
| MC08-18 | 8.0mm x 18 | 177 | 2.4 | Step |
| MC08-24 | 8.0mm x 24 | 224 | 2.4 | Step |
| MC08-32 | 8.0mm x 32 | 287 | 2.4 | Step |
| MC10-18 | 10.0mm x 18 | 216 | 3.0 | Step |
| MC10-24 | 10.0mm x 24 | 276 | 3.0 | Step |
| MC10-32 | 10.0mm x 32 | 352 | 3.0 | Step |
| MC13-12 | 13.0mm x 12 | 170 | 4.0 | Step |
| MC13-18 | 13.0mm x 18 | 231 | 4.0 | Step |
| MC13-24 | 13.0mm x 24 | 294 | 4.0 | Step |
| MC13-32 | 13.0mm x 32 | 379 | 4.0 | Step |
| MCX08-18 | 8.0mm x 18 | 182 | 2.4 | Step |
| MCX08-24 | 8.0mm x 24 | 231 | 2.4 | Step |
| MCX10-12 | 10.0mm x 12 | 158 | 3.0 | Step |
| MCX10-18 | 10.0mm x 18 | 215 | 3.0 | Step |
| MCX10-24 | 10.0mm x 24 | 276 | 3.0 | Step |
| MCX13-12 | 13.0mm x 12 | 197 | 4.0 | Step |
