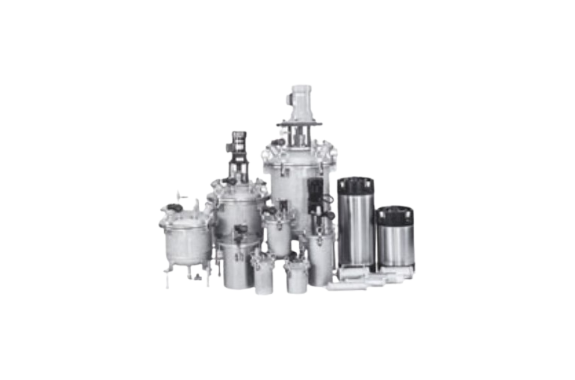

Tomita Engineering Air Pressure Tank

Manufacturer: Tomita engineering Co.,Ltd.
Model: Air pressure tank

Feature

Air-pressure tanks are primarily used in conjunction with liquid metering devices to transport liquids ranging from low viscosity liquids like water to medium viscosity liquids (50,000 cps) using air pressure.
They are ideal for uniformly transporting a consistent amount of liquid in combination with timers, dosing valves , etc.
Air-pressure tanks are broadly classified into suction-type and bottom-discharge-type tanks; considering the liquid viscosity and handling method.

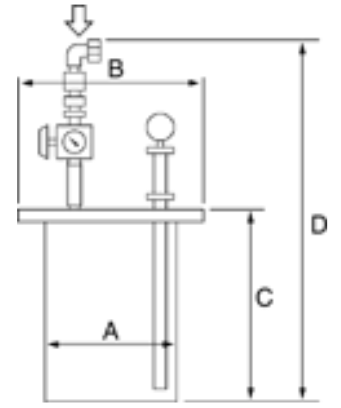

Suction type
Capacity	Approximate dimensions in mm				Material	Operating pressure limit MPa	Remarks
Capacity	A	B	C	D	Material	Operating pressure limit MPa	Remarks
1.0L	102	142	200	400	SUS	0.5	Stationary type
2.0L	133	155	185	420	iron	0.5	Stationary type
2.0L	140	190	205	405	SUS	0.5	Stationary type
3.0L	140	190	290	490	SUS	0.5	Stationary type
4.0L	157	180	245	480	iron	0.5	Stationary type
6.0L	180	205	265	490	iron	0.5	Stationary type
6.0L	216	280	272	472	SUS	0.5	Stationary type
10.0L	235	315	465	545	iron	0.5	Stationary type with manual stirring function
10.0L	267	345	357	375	SUS	0.5	Stationary type
3 gallons	228		377		SUS	0.7	Stationary type
5 gallons	228		564		SUS	0.7	Stationary type
20.0L	298	320	400	640	iron	0.35	Stationary type with manual stirring function
20.0L	318	422	428	482	SUS	0.35	Stationary type
40.0L	395	465	470	695	iron	0.19	Stationary type with manual stirring function
40.0L	358	448	564	649	SUS	0.19	Stationary type

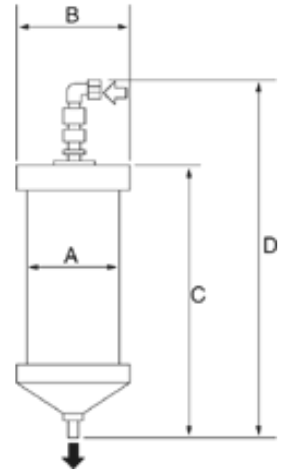

Bottom (side-down) opening type
Capacity	Approximate dimensions in mm				Material	Operating pressure limit MPa	Remarks
Capacity	A	B	C	D	Material	Operating pressure limit MPa	Remarks
0.16L	46	60	187	–	PA, Aluminum	0.5	Direct connection type
0.25L	46	50	238	328	BSBM	0.5	Direct connection type
0.25L	48	54	238	328	SUS	0.5	Direct connection type
0.3L	46	60	320	–	PA, Aluminum	0.5	For cartridge resin
0.5L	70	76	203	291	BSBM	0.5	Direct connection type
0.5L	75	80	230	320	SUS	0.5	Direct connection type
1.0L	101	145	196	361	SUS	0.5	Stationary type
2.0L	139	190	199	364	SUS	0.5	Stationary type
3.0L	139	190	287	452	SUS	0.5	Stationary type
6.0L	216	280	282	447	SUS	0.5	Stationary type
10.0L	267	345	357	375	SUS	0.5	Stationary type
20.0L	298	320	400	640	iron	0.35	Stationary type with manual stirring function
20.0L	318	422	428	482	SUS	0.35	Stationary type
40.0L	395	465	470	695	iron	0.19	Stationary type with manual stirring function
40.0L	358	448	564	649	SUS	0.19	Stationary type
