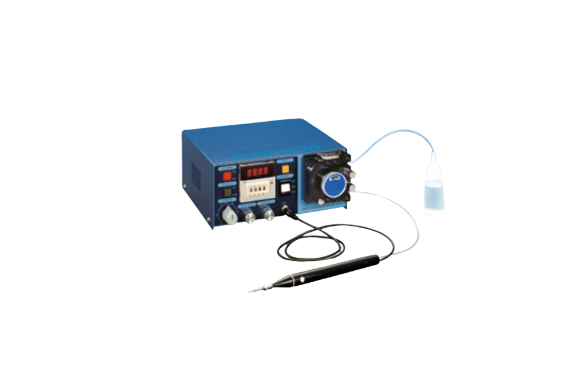

Tomita Engineering TOM.200 Tubing Dispenser

Manufacturer: Tomita engineering Co.,Ltd.
Model: TOM.200

Feature

Equipped with a high-precision digital timer (0.01 to 99.99 seconds), ensuring exceptional dispensing accuracy.
The vacuum interval mechanism allows for instantaneous vacuuming and an interval time to prevent the dispensed liquid from being sucked back in.
The vacuum mechanism prevents hardening of the material at the tip of the tube after dispensing, as well as dripping and leakage.
The rotor rotation speed can be freely set from 0 to 100 RPM.
The dispensed liquid does not touch anything other than the inner wall of the tube, making maintenance easy.
Equipped with a dispensing completion signal, making it ideal for integration into automated equipment.
Dispensing volume of 0.0001 cc/shot is possible.

Power supply	AC100V～240V 50/60Hz
Power consumption	20W

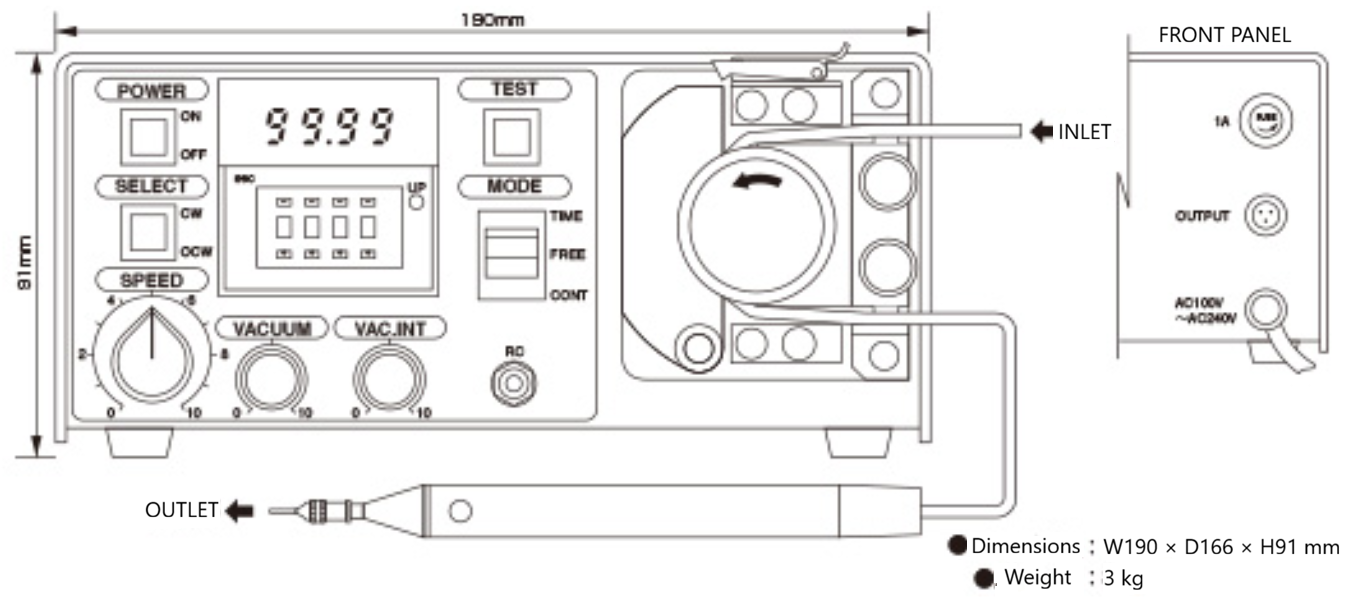

External dimensions	W190×D166×H91
Weight	3kg
Rotor rotation speed	0-100 RPM (variable speed)
Dispensing timer	0.01 to 99.99 (LED display)
Vacuum timer	0-3 seconds
Vacuum interval	0-2 seconds
Discharge amount	0.0001cc/shot ~
Standard specifications	Rotor section: Teflon tube 1.4φ×2.0φ Nozzle section: Teflon tube 1.0φ×1.6φ
Continuous flow rate	Teflon tube: 0.02cc to 4.88cc/min (depending on tube diameter)
	Silicone tube: 0.3cc to 15.7cc/min (depending on tube diameter)
	Super Cone Tube: 0.3cc to 19.7cc/min (depending on tube diameter)
Non-standard applicable tube diameter	Teflon 1.9φ×2.5φ～3.0φ×3.6φ (T1 type)
	Teflon 0.25φ×0.75φ～0.5φ×1.0φ (T2 type)
	Silicone 1.0φ×3.0φ～3.0φ×5.0φ (G type)
	Super Cone 2.0φ×4.0φ～3.0φ×5.0φ (G type)
Applicable viscosity	Teflon tubing 1-1,000 cps
Applicable viscosity	Supercorn Silicone Tube 1-10,000 cps
Dispensing completion signal	Voltage-free contact signal (0.1-second pulse)
Accuracy	±1-5%

Handheld switch type nozzle holder MN-3	1 bottle
1.0φ × 1.6φ Teflon® Tube	2m (Sold separately in units of 10m)
1.4φ×2.0φ Teflon® Tube	2m (Sold separately in units of 10m)
Oiler for rotors	1 bottle
Start signal input connector	1 piece
Connector for outputting when dispensing is complete.	1 piece
Hex wrench for set screws M3	1 piece
