TOMITA ENGINEERING

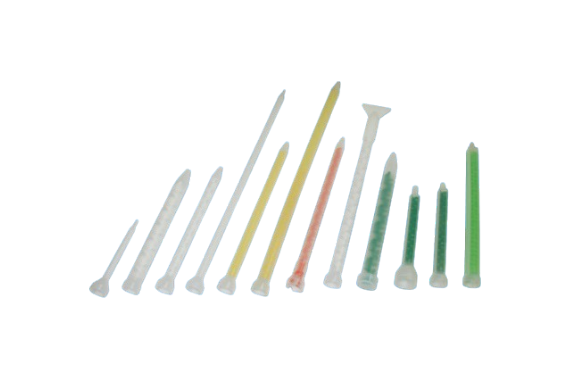

Tomita Engineering Static Mixer ME/MS/MR Series
Manufacturer: Tomita engineering Co.,Ltd.
Model: ME/MS/MR Series
Feature
- Available for ME/MS high-pressure use in two-component mixing equipment.
- MR-Element is a type that uses a rotating mechanism.
- Housing : PP, Element : Polyacetal
Specifications
| Part Number | Number of elements | Full length | Discharge port inner diameter | Tip shape |
| MEorMS05-24 | 5.0mm x 24 | 150mm | 1.5mm | Step |
| MEorMS05-32 | 5.0mm x 32 | 188 | 1.5 | Step |
| MEorMS06-24 | 6.4mm x 24 | 185 | 1.8 | Step |
| MEorMS06-32 | 6.4mm x 32 | 235 | 1.8 | Step |
| MEorMS06-48 | 6.4mm x 48 | 334 | 2.4 | Step |
| MEorMS06-56 | 6.4mm x 56 | 378 | 4.5 | Step |
| MEorMS08-24 | 8.0mm x 24 | 224 | 2.4 | Step |
| MEorMS08-32 | 8.0mm x 32 | 287 | 2.4 | Step |
| MEorMS10-24 | 10.0mm x 24 | 276 | 3.0 | Step |
| MEorMS10-32 | 10.0mm x 32 | 352 | 3.0 | Step |
| MEorMS13-24 | 13.0mm x 24 | 293 | 4.0 | Step |
| MEorMS13-32 | 13.0mm x 32 | 378 | 4.0 | Step |
| MR06-12 | 6.4mm x 12 | 112 | 1.8 | Step |
| MR08-12 | 8.0mm x 12 | 130 | 2.4 | Step |
| MR10-12 | 10.0mm x 12 | 155 | 3.0 | Step |
| MR13-12 | 13.0mm x 12 | 197 | 4.0 | Step |
