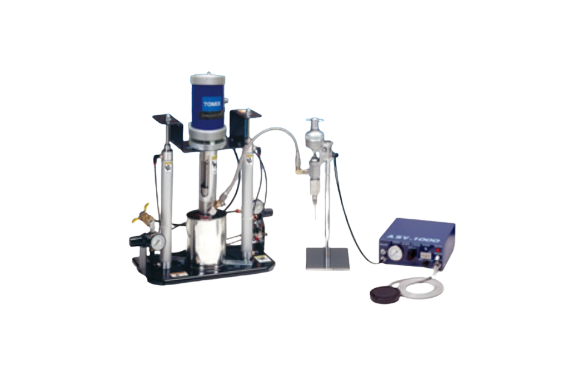

Tomita Engineering PAL-200 Can Material Pressure Feed Dispenser
Manufacturer: Tomita engineering Co.,Ltd.
Model: PAL-200
Feature
- The powerful downward pressure from the air-driven ram cylinder, combined with the action of the inductor plate and the upward stroke of the pump.
- It forces the material into the pump, ensuring reliable pumping of even semi-solid, high-viscosity materials and achieving a precise discharge rate.
- High-viscosity adhesives, greases, etc. can be directly pumped from 18L pails. High-precision quantitative dispensing dispenser.
Specification
| Power supply | AC100V 50/60Hz |
| Power consumption | 20W |
| Air source | 0.4 MPa or higher |
| Air consumption | 80L/MIN |
| Pump pressure ratio | 12:1 |
| Discharge pressure | MAX. 8 MPa |
| Discharge amount | 0.01cc/shot ~ |
| Discharge flow rate | MAX.200c.c./MIN(250,000cps) |
| Applicable viscosity | 10,000mPa･s～600,000mPa･s |
| External input | Voltage-free contact signal 20ms or longer |
| External output | Open collector output (for use with DC 30V, 100mA or less) |
| Weight | Main unit 8.4kg, dispensing gun 800g, control box 3.5kg |
| Accuracy | ±5% |
