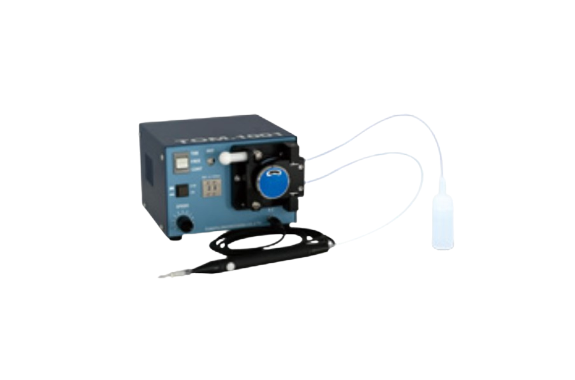

Tomita Engineering TOM.1001 Tubing Dispenser
Manufacturer: Tomita engineering Co.,Ltd.
Model: TOM.1001
Feature
- Rotor rotation speed can be freely set from 0 to 120 RPM.
- Discharge volume of 0.0001 cc/shot is possible.
- Unique special rotor mechanism dramatically increases tube life.
- Equipped with a smart and compact nozzle holder with a hand switch for excellent operability.
- Discharged liquid does not touch anything other than the inner wall of the tube, making maintenance easy.
- All-metal construction, including the rotor, makes it small and robust
- Operates on power supply only; no air equipment is required.
- Equipped with a simple discharge timer (0.1 to 9.9 sec).
Specification
| Power supply | AC 100-240V 50/60Hz |
| Power consumption | 20W |
| Rotor rotation speed | 0~120RPM (~60/240RPM switchable) |
| Dispensing timer | 0.1~9.9 seconds |
| Discharge amount | 0.0001cc/shot ~ |
| Continuous flow rate | Teflon® tube: 0.02cc to 3cc/min |
| Silicone tube: 0.3cc to 14cc/min | |
| Applicable tube diameter | Teflon® 1.0φ×1.6φ〜2.4φ×3.0φ (T-type) |
| Teflon® 0.25φ×0.75φ〜0.5φ×1.0φ (TS type) | |
| Silicone 1.0φ×3.0φ～3.0φ×5.0φ (G type) | |
| Applicable viscosity | Teflon® tubing, 1–1,000 cps |
| Silicone tube 1-10,000 cps | |
| Accuracy | ±1-5% |

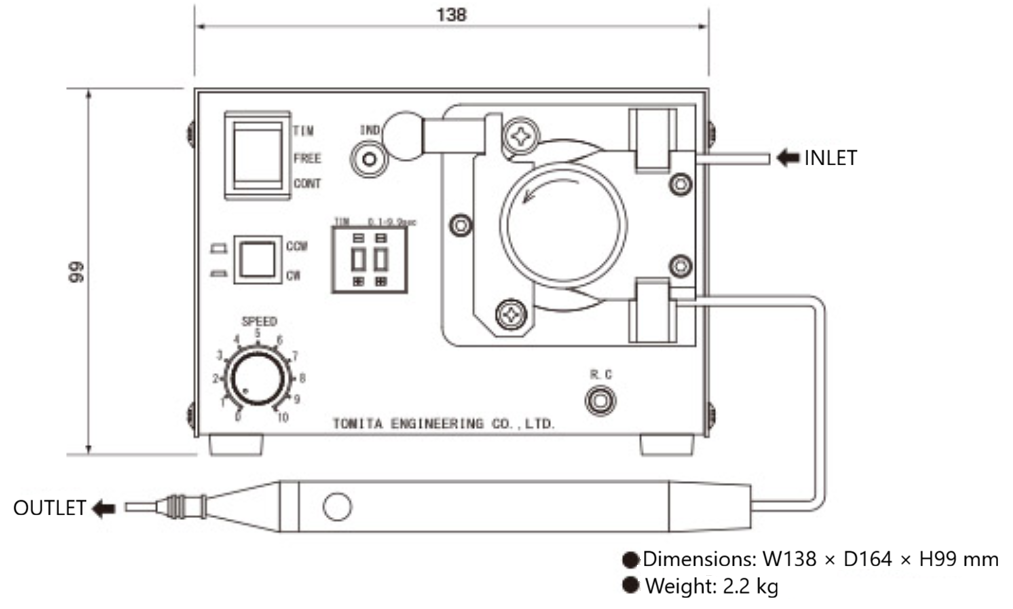

Dimensional drawing
Standard accessories (for standard specifications)
| AC adapter | 1 piece (IN AC100~240V/OUT DC12V) |
| Nozzle holder with hand switch | 1 bottle |
| 1.0φ × 1.6φ Teflon® Tube | 2m (Sold separately in units of 10m) |
| 1.4φ×2.0φ Teflon® Tube | 2m (Sold separately in units of 10m) |
| Oiler for rotors | 1 bottle |
| Start signal input connector | 1 piece |
| 4-pin connector for input and output signals | 1 unit (12-24V input/open collector output) |
