TOMITA ENGINEERING

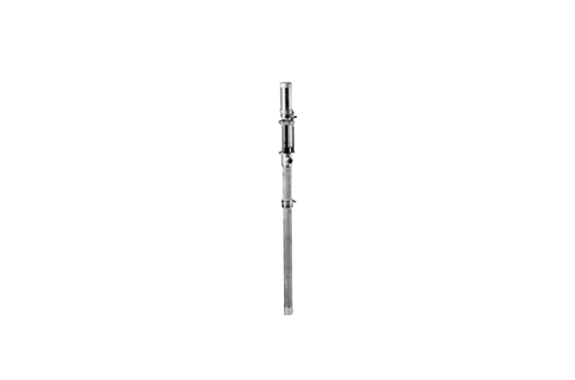

Tomita Engineering 1:1 Drum Pump (For Low Viscosity)
Manufacturer: Tomita engineering Co.,Ltd.
Model: 1:1 Drum Pump
Feature
- Allows for the transfer/discharge of liquid materials without the need for manual transfer from drums with lids.
- Air-driven pump makes installation easy and suitable for use in explosion-proof areas.
- Wetted parts material can be selected.
Specification
| Pressure ratio | 1 × 1 |
| Maximum discharge pressure | 1.2 MPa |
| Maximum discharge amount | 15 L/min (at 100 cycles) |
| Approximate dimensions | Approximately φ60 × h 1,620mm Approximately 9kg |
*Maximum discharge volume may vary depending on material viscosity and piping conditions.
