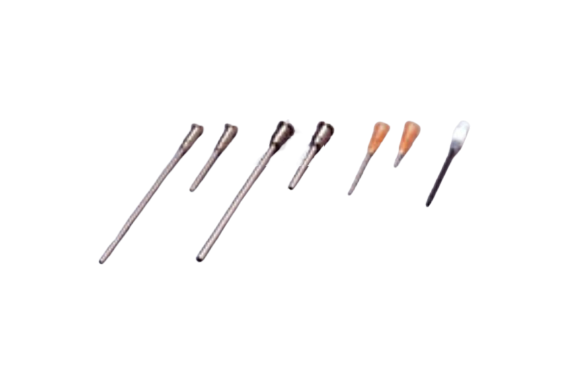

Tomita Engineering NM / NP / TS Type Liquid Dispensing Nozzle

Manufacturer: Tomita engineering Co.,Ltd.
Model: NM / NP / TS Type

Feature

  • Suitable for a wide range of uses.
  • In liquid dispensing, the nozzle at the outlet greatly affects work efficiency.

Nozzle Dimensions Standard Table

bossSymbol (G)Outer diameter (OD)Inner diameter (ID)length
NM type

*
Suitable for dosing valves DV-S and FDV-L.
*Boss S: Compatible with DV-S,
FDV-SWA, MAV-10, etc.
*Boss L: Compatible with FDV-L and
FDV-LWA.
SNM250.510.2610-80mm
NM230.630.3310-80mm
NM210.810.5110-80mm
NM191.060.7010-80mm
NM181.260.9010-80mm
S or LNM171.481.1210-80mm
NM151.811.4510-80mm
NM142.111.6910-80mm
NM132.411.9910-80mm
NM113.062.6410-80mm
NM103.402.8410-80mm
NM84.203.6410-80mm
LNM74.574.0110-80mm
NM65.014.4510-80mm
NP typeNP300.310.1310mm
NP270.410.1910mm
NP260.450.2310mm
NP250.510.2610/30mm
NP240.550.3010/30mm
NP230.630.3310/30mm
NP220.710.4110/30mm
NP210.810.5110/30mm
NP200.880.5810/30mm
NP191.060.7010/30mm
NP181.260.9010/30mm
NP171.481.1210mm
NP161.611.2510mm
NP151.811.4510mm
NP142.111.6910mm
NP132.411.9910mm
TS typeTS25P0.730.3338mm
TS22P0.810.3838mm
TS20P0.990.6038mm
TS18P1.340.8138mm
TS16P1.701.1938mm
TS15P1.821.3738mm
