TOMITA ENGINEERING

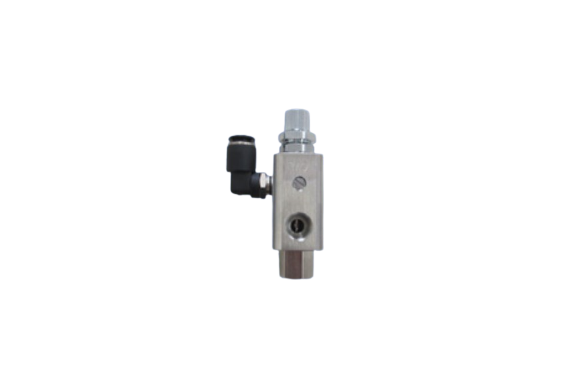

Tomita Engineering MAV-10-1/8 Mini Auto Valve
Manufacturer: Tomita engineering Co.,Ltd.
Model: MAV-10-1/8
Feature
- Ultra-compact design, ideal for integration into automated equipment.
- Made of stainless steel.
- Uses a needle valve system.
- Easy installation.
- Air ports are located in two places: front and side.
- Equipped with a flow rate adjustment mechanism.
Specification
| Operating air pressure | 0.4 to MPa |
| Airport | M5 (P=0.8) |
| Liquid port | IN: Rp1/8 OUT: Rp1/8 |
| Installation method | Mounting holder for 8φ round bar or 2-M6 (p=1) |
| Discharge amount | 0.001cc/shot or continuous |
| Applicable viscosity | 1 to 300,000 cps |
| Operating cycle | 100 Shots/min |
| Material | SUS-304 (Packing = Teflon/Perfluoro) |
| Outer diameter | 19W×22D×65H |
| Weight | 140g |
