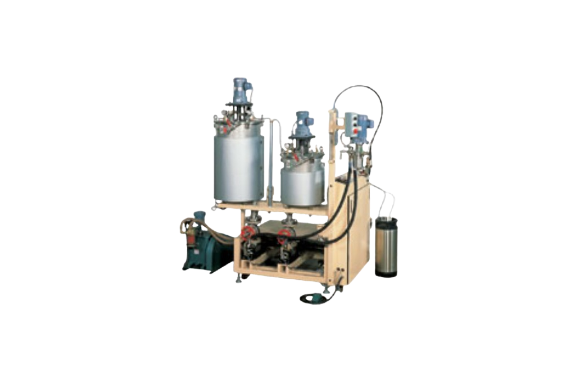

Tomita Engineering Twin Flow VR50/100 Automatic Two-Component System
Manufacturer: Tomita engineering Co.,Ltd.
Model: VR50/100
Feature
- It has a simple mechanism and is easy to operate.
- Cleaning and maintenance after operation are also easy.
- Maximum mixing ratios are 100:100 and 200:1. The usable viscosity ranges from 1 to 1,000,000 cps, providing a wide range of applications.
- It can also handle liquids containing fillers such as silica and alumina.
- Mixing discharge volume up to a maximum of 1000cc/shot.
- Ideal for integration into factory automation (FA) lines.
- It comes with a variety of options, including a heater and degassing functions.
Specifications
| Twinflow VR50 | Twin Flow VR100 | |
| Discharge volume range | 3–255 mL/shot | 50-1000 mL/shot |
| Adaptation ratio range | 100:100～100:1 | 100:100-200:1 |
| Usable viscosity | 1 to 100,000 mPa·s (High viscosity can be used by heating) | |
| Raw material tank | 20L Open Tank (Stainless Steel) | 40L Open Tank (Stainless Steel) |
| Washing tank | 19L pressure tank (stainless steel) | |
| Mixing section (mixer) | Electric rotary mixer | |
| Discharge part | Tip valve (FV-S) | Tip valve (FV-L) |
| Weighing method | Volumetric measurement (posiroto method) | |
| Drive system | Air cylinder drive | |
| Control method | Compact PLC control | |
| Air source | 0.5 MPa | |
| Power consumption | 0.5kW 2.5A/200V | |
| Main unit weight | Approximately 300kg | Approximately 350kg |
