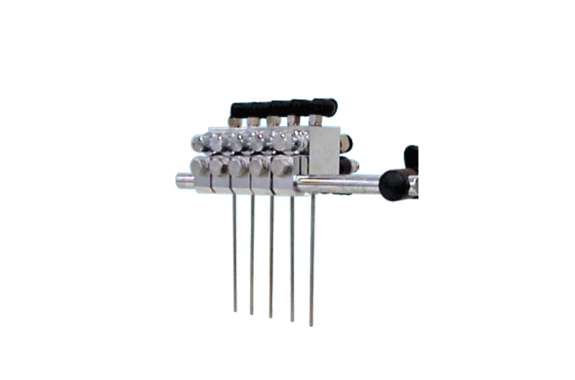

Tomita Engineering FU-3-7 Thin-Type Needle Spray Gun
Manufacturer: Tomita engineering Co.,Ltd.
Model: FU-3-7 Thin-type
Feature
- The needle length and diameter can be selected as desired, and it can also be used as a dispenser gun (suitable for potting and drawing lines).
- Ultra-compact and lightweight design. Easily attaches to a 10mm diameter round bar using the included holder.
- Ideal for integration into automated production lines.
Specification
| Nozzle (liquid discharge) | × | Cap (for air blowing) | × | Length | |||||
| Gauge | Outer diameter | Inner diameter | Gauge | Outer diameter | Inner diameter | ||||
| Thin | 27G | 0.41φ | 0.19φ | 19G | 1.06φ | 0.70φ | 80L (mm) | ||
|---|---|---|---|---|---|---|---|---|---|
| 26G | 0.45φ | 0.23φ | 18G | 1.26φ | 0.90φ | ||||
| 25G | 0.51φ | 0.26φ | 18G | 1.26φ | 0.90φ | ||||
| 24G | 0.55φ | 0.30φ | 17G | 1.48φ | 1.12φ | ||||
| 23G | 0.63φ | 0.33φ | 17G | 1.48φ | 1.12φ | ||||
| 22G | 0.71φ | 0.41φ | 16G | 1.61φ | 1.25φ | ||||
| Standard | 20G | 0.88φ | 0.58φ | 15G | 1.81φ | 1.45φ | |||
| Thick | 19G | 1.06φ | 0.70φ | 14G | 2.11φ | 1.69φ | |||
| 18G | 1.26φ | 0.90φ | 13G | 2.41φ | 1.99φ | ||||
| 17G | 1.48φ | 1.12φ | 13G | 2.41φ | 1.99φ | ||||
| 14G | 2.11φ | 1.69φ | 11G | 3.06φ | 2.64φ | ||||
| 11G | 3.06φ | 2.64φ | 8G | 4.20φ | 3.64φ | ||||
| 10G | 3.40φ | 2.84φ | 7G | 4.57φ | 4.01φ | ||||
