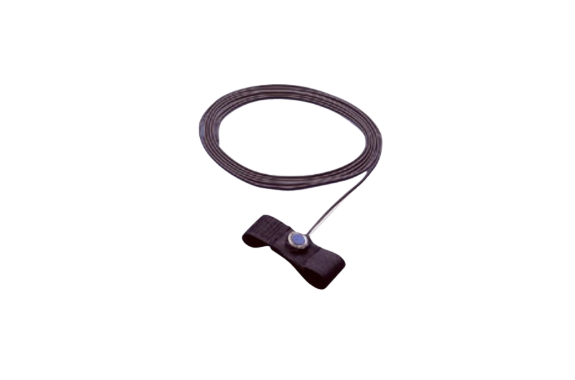

Tomita Engineering TS-180 Velcro-Type Hand Switch
Manufacturer: Tomita engineering Co.,Ltd.
Model: TS-180 Velcro-type
Feature

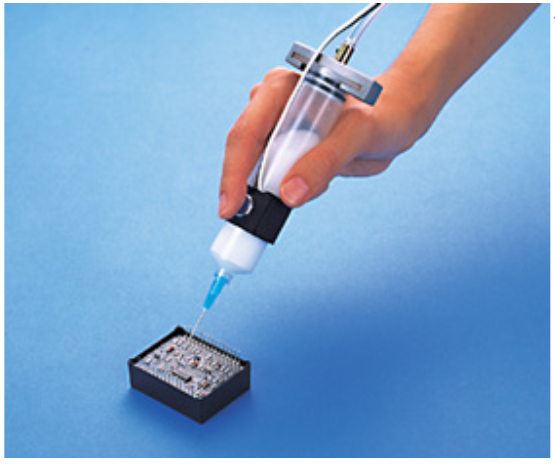

- Can be attached to various dispenser syringes from φ15 to φ50.
- One-touch removal using Velcro.
- Thin switch with minimal operation and a light click feel.
- Dustproof type with rubber seal to prevent the entry of dirt and dust.
- Can be attached to various tools, etc.
- Custom sizes can also be manufactured.
Specification
| Circuit configuration | 1 circuit, normally open |
| Contact Rating | Maximum/30mA, DC12V Minimum/0.1mA, DC5V |
| Contact resistance | 100Ω or less (1mA, DC5V) |
| Insulation resistance | 100Ω or more (DC250V) |
| Actuation force | 150±30g |
| Operating temperature range | -30℃ to +70℃ |
| Durability | More than 1 million times (5mA, DC12V, R load) |
| Lead wire | 2m |
| Tape dimensions | Width 20mm, Length 180mm |
| Weight | 10g |
| Mounting dimensions | φ15～φ50mm |
| Switch section thickness | 7mm |
