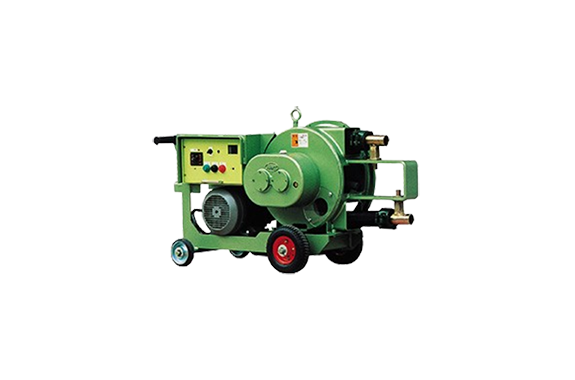

Tomosada Kenki TS-53MT Peristaltic Pump With Frequency Inverter
Manufacturer: Tomosada Kenki Corpotatoin ., Ltd.
Model: TS-53MT
Specification
| Model | TS-53MT | TS-53MT-5 |
| Power supply | 3.7kw Three phase * | |
| Speed control | 2 Step pulley and inverter | |
| Discharge volume | 4 – 50L/min | 5 – 76L/min |
| Max. output pressure | 2.5Mpa（25kgf/C㎡） | |
| Deliverable distance | Horizontally 120m or vertically 30m | |
| Pumping tube | Dia.40×L1250 | Dia.50×L1400 |
| Pumping roller | 3 rollers | |
| Dimension | L1270×W540×H640mm | |
| Weight | 195kg | |
* Voltages can be converted for the condition in your country
