Impact Wrench, Japan, TONE, TOOLS & EQUIPMENT
TONE AGR01 Air Grinder
Import from: Japan
Manufacturer: TONE
Model: AGR01
Compact, lightweight and easy to work.
Ideal for all metal polishing and deburring operations.
Stepless output adjustment with the trigger.
With safety stopper.
Includes collet chuck with shaft diameter of 3.6 mm.
With rotation speed adjustment function
Accessories
※ The tip grinding tool is not included with the product.
Example

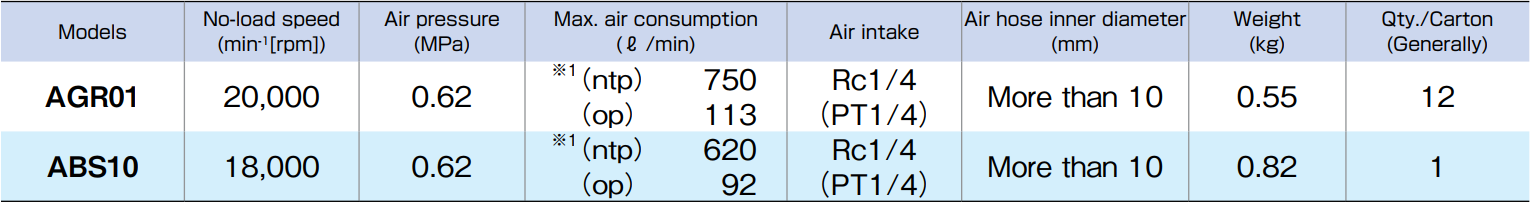

Specification
| Models | No-load speed (min^-1[rpm]) | Air pressure (MPa) | Max. air consumption (ℓ/min) | Air intake | Air hose inner diameter (mm) | Weight (kg) | Qty./Carton (Generally) |
|---|---|---|---|---|---|---|---|
| AGRO1 | 20,000 | 0.62 | ※1 (NTP) 750 (op) 113 | Rc1/4 (PT1/4) | More than 10 | 0.55 | 12 |
| ABS10 | 18,000 | 0.62 | ※1 (NTP) 620 (op) 92 | Rc1/4 (PT1/4) | More than 10 | 0.82 | 1 |
※ Use a compressor with an air tank. The output of the compressor is recommended to be 3 kW (4PS) or more.
※ 1 The maximum air consumption (NTP) indicates the air consumption converted to the standard condition (0 ° C, 1 atm = 0.1MPa). The maximum air consumption (op) indicates the air consumption under actual operating conditions (20 ° C, 0.62MPa).

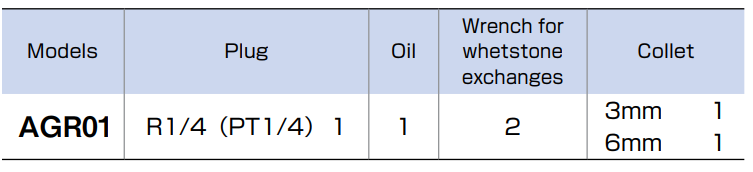

Accessories
| Models | Plug | Oil | Wrench for whetstone exchanges | Collet |
|---|---|---|---|---|
| AGRO1 | R1/4 (PT1/4) | 1 | 2 | 3mm 1 6mm 1 |
Warning:
Please read the instruction manual carefully before use.
Use goggles and protective devices.
Kouei is Official Distributor/Agent of TONE.
