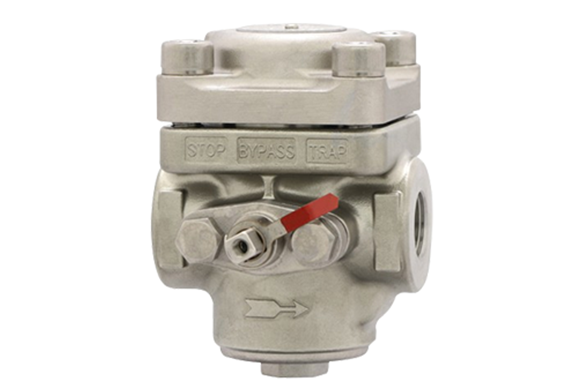

Venn ADB-21 type Steam trap with bypass
Manufacturer: Venn Co., Ltd.
Model: ADB-21
Features
- Both the main body and key components make of stainless steel.
- In addition, it can mount horizontally or vertically with the outlet facing downward.
- However, mounting with the top lid facing downward does not allowed.
- Moreover, the trap, bypass, and stop functions integrate.
- As a result, switching between these functions is easy with a single tool.
Specifications
| Product code | ADB21-D |
|---|---|
| Valve type | steam trap |
| format | Disc type |
| Nominal diameter | 15-25 (1/2-1) |
| Applicable fluid | steam |
| Fluid temperature | 184 ℃ or less |
| Applicable pressure | 0.03 to 1.0MPa |
| Maximum continuous emissions | 800L / h |
| End connection | JIS Rc screw |
| Mounting posture | Horizontal / vertical (exit downward) / horizontal mounting free (excluding top lid downward) |
| Material body | SCS |
| Material Valve seat | SUS |
| Material disc | SUS |
| Material ball | SUS |
