Venn Co.

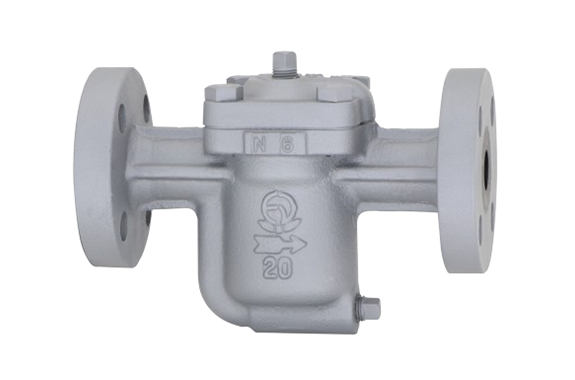

Venn AK-5F type steam trap
Manufacturer: Venn Co., Ltd.
Model: AK-5F
Features
- The SSR shockless self-return mechanism adopts.
As a result, impact during valve closing reduces.
In addition, the valve body closes automatically regardless of bucket buoyancy.
Therefore, it can operate reliably from low to high pressure.
Moreover, the compact body makes installation easy in tight spaces.
Specifications
| Product code | AK5F-ML | AK5F-MM | AK5F-MH | AK5F-MS | AK5F-MV |
|---|---|---|---|---|---|
| Valve type | steam trap | ||||
| format | Bucket type | ||||
| Nominal diameter | 15-25 (1/2-1) | ||||
| Applicable fluid | steam | ||||
| Fluid temperature | 184 ℃ or less | 220 ℃ or less | |||
| Applicable pressure | 0.01-0.3MPa | 0.01-0.7MPa | 0.01-1.0MPa | 0.01-1.6MPa | 0.01-2.0MPa |
| Maximum continuous emissions | 300L / h | 220L / h | 175L / h | 160L / h | 120L / h |
| End connection | JIS 10K / 20K (shared) FF flange | ||||
| Mounting posture | Upright mounting on horizontal piping | ||||
| Material body | FCD | ||||
| Material Valve body | SUS | ||||
| Material Valve seat | SUS | ||||
| Material protector | SUS | ||||
