Venn Co.

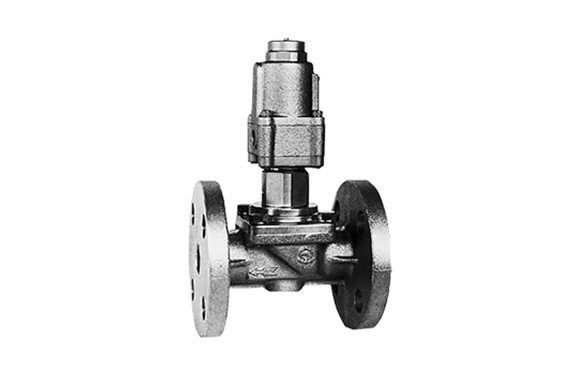

Venn CCF-1 Cylinder Valve
Manufacturer: Venn Co., Ltd.
Model: CCF-1
Features
- It is compact and lightweight.
- It can use across a wide pressure range.
- With various options available, you can select the valve that best suits your usage conditions.
Specification
| Product Symbol | CCF1-W | CCF1-V |
|---|---|---|
| Valve body part actuation | Valve closure when pressurized | |
| Valve body part type | Two-sided mouth | |
| Valve body nominal diameter | 15～80（1/2～3） | 15～50（1/2～2） |
| Valve body part Applicable fluid | Water, hot water, air, oil (kerosene, light oil, A heavy oil) | |
| Valve body fluid temperature | 5～100℃ | |
| Valve body fluid viscosity | 50cSt or less | |
| valve body part applied pressure | 0～1.0MPa | |
| Valve body end connection | JIS 10K FF Flange | |
| Valve body part material body body | CAC | SCS |
| Valve body part material key part | SUS | |
| Valve body part material key part disc | PTFE | |
| Valve body body pressure test | 1.5MPa at water pressure | |
| Drive Form | Single-acting (spring return) | |
| Drive Material | AC4C | |
| drive operating air pressure | 0.3～0.7MPa | |
| Drive Tightness Test | 0.9MPa by air pressure | |
