Venn Co.

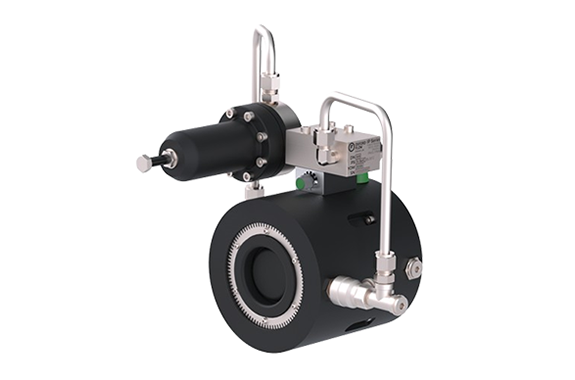

Venn IP type pressure reducing valve (for liquids)
Manufacturer: Venn Co., Ltd.
Model: IP type
Features
- Compact, lightweight and reliable pressure control
- Axial flow piston structure
- Simple structure and high durability
Specifications
| Product code | IP/PR1 |
|---|---|
| Valve type | Pressure reducing valve |
| type | For 16bar or less |
| Nominal diameter | 50-300 (2-12) |
| Applicable fluid | Non-corrosive liquids |
| Fluid temperature | 0 to 55°C |
| Primary side applied pressure | 16bar or less |
| Secondary adjustment pressure range (set pressure) | 1: ~2.5bar, 2: ~8bar, 3: ~12bar |
| Maximum decompression ratio | Please contact us as this will vary depending on the conditions of use. |
| End connection | Wafer type (compatible with PN and ANSI flanges) |
| Mounting posture | Horizontal/Vertical (flow direction bottom to top only) |
| Material body | POM-C |
