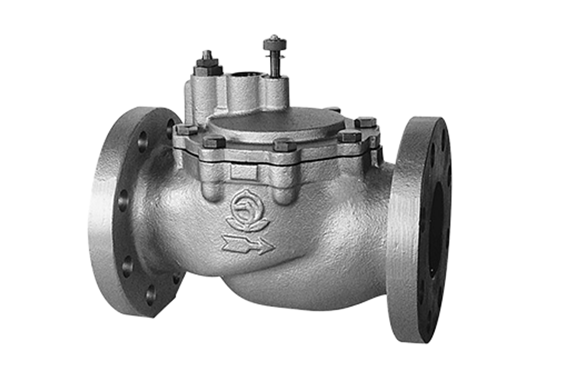

Venn LP-9HN type constant water level valve (for water, with adjustment mechanism for general use)
Manufacturer: Venn Co., Ltd.
Model: LP-9HN
Features
- It equips with a flow rate adjustment mechanism and a needle for controlling the valve closing time.
- For measures against red water, the screw-in type features a bronze main body, and the pipe end core can incorporate.
- Since the passage to the pilot pipe is a bypass, intermittent water supply from the ball tap due to waves does not affect the system.
- As a result, it ensures a quiet and stable water supply.
Specifications
| Product code | LP9HN-F |
|---|---|
| Valve type | Constant water level valve |
| Nominal diameter | 40-100 (1 1/2-4) |
| Applicable fluid | Tap water / industrial water |
| Fluid temperature | 5 to 60 ° C (5 to 40 ° C when using a tube end core) |
| Applicable pressure | Nominal diameter 40/50: 0.03 to 0.75MPa, Nominal diameter 65 to 100: 0.035 to 0.75MPa |
| Minimum differential pressure before and after the valve | Nominal diameter 40/50: 0.03MPa, Nominal diameter 65-100: 0.035MPa |
| End connection | JIS 10K FF flange |
| Flow rate adjustment mechanism | With |
| Valve closing time adjustment needle | With |
| Drainage mechanism | ─ |
| Mounting posture | Upright mounting on horizontal piping |
| accessories | Nominal diameter 20 ball tap (with poly ball sand) Nominal diameter 20 male / female bushing |
| Material body | CAC406 |
| Material parts | C3604 / NBR |
| Painted inner surface | ─ |
