Venn Co.

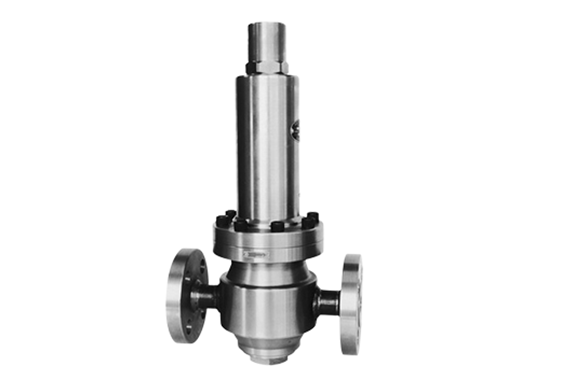

Venn MD-1A type primary pressure control valve (for oil and liquid)
Manufacturer: Venn Co., Ltd.
Model: MD-1A
Specifications
| Product code | MD1A-N | MD1A-D |
|---|---|---|
| Valve type | Primary pressure control valve | |
| Nominal diameter | 15-50 (1/2-2) | |
| Applicable fluid | oil ·liquid | |
| Fluid temperature | 5-80 ° C | |
| Set pressure adjustment range | L: 0.5-1.0MPa M: 1.0-1.5MPa H: 1.5-2.5MPa S: 2.5-3.0MPa | |
| Blow-down pressure | Set pressure x 10% or less | |
| Fluid viscosity | 700cSt or less | |
| End connection | JIS 30K RF flange | |
| Mounting posture | Upright mounting on horizontal piping | |
| Material body | S25C | SUS |
| Material parts | SUS | |
