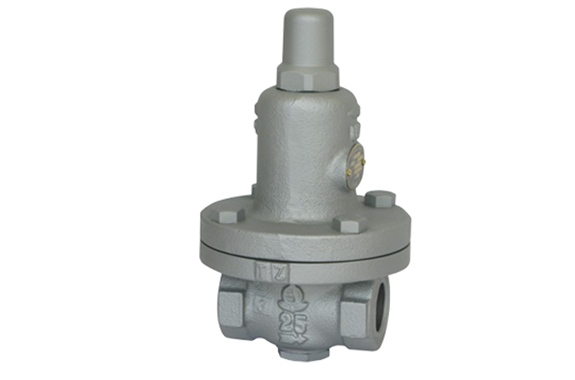

Venn RD-3H type pressure reducing valve (for steam / gas / liquid)
Manufacturer: Venn Co., Ltd.
Model: RD-3H type
Features
- This is a direct-acting pressure reducing valve for small flow rates.
- It is used where pilot-type valves cannot provide stable control.
- In addition, it offers accurate pressure control and a wide adjustment range.
- Moreover, SUS material is available for steam applications.
- Please note that specifications differ for steam, air, gas, and liquid.
Specifications
| Product code | RD3H-GH |
|---|---|
| Nominal diameter | 15-25 (1/2-1) |
| Applicable fluid | steam |
| Fluid temperature | 184 ℃ or less |
| Primary side applied pressure | 1.0MPa or less |
| Secondary adjustment pressure range | 0.035-0.5MPa |
| Maximum decompression ratio | 15:1 |
| Minimum differential pressure before and after the valve | 0.02MPa |
| Deadline boost | 0.02MPa or less |
| Allowable leakage amount | 0.05% or less of the rated flow rate |
| End connection | JIS Rc screw |
| Material body | FC |
| Material Valve body | SUS |
| Material Valve seat | SUS |
| Mounting posture | Upright mounting on horizontal piping (inverted mounting for liquids) |
| Fluid viscosity (control item) | ─ |
