Venn Co.

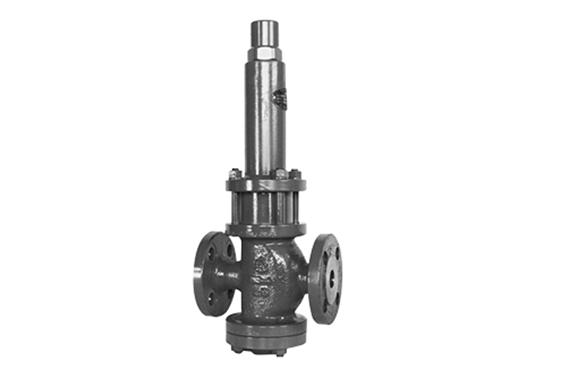

Venn RD-17 Pressure Reducing Valve for Water and Liquid
Manufacturer: Venn Co., Ltd.
Model: RD-17
Specifications
| Product Symbol | RD17-C |
|---|---|
| Types of valves | Pressure Reducing Valve |
| Nominal diameter | 20～150（3/4～6） |
| Applicable fluids | Water & Liquids |
| Fluid temperature | 5~80°C (5~100°C for nominal diameter 50 or less) |
| Fluid viscosity | Below 700cSt |
| Primary Side Application Pressure | 3.0MPa or less |
| Secondary Side Regulation Pressure Range (Set Pressure) | L: 0.7~1.05MPa H: 1.0~1.4MPa Applicable pressure Refer to the selection diagram |
| Minimum differential pressure before and after the valve | 0.05MPa |
| Cut-off boost | Less than 0.05MPa |
| Allowable leakage | None (pressure gauge visual) |
| Offset | 0.7~1.05MPa spring: within 0.15MPa 1.0~1.4MPa spring: within 0.2MPa |
| End connection | JIS 10, 16, 20, 30K RF Flange |
| Mounting Position | Upright mounting on horizontal piping |
| Material: Body | SCPH |
| Material: Valve body | SUS |
| Material: Valve seat | SUS |
| Material: Disc | NBR |
