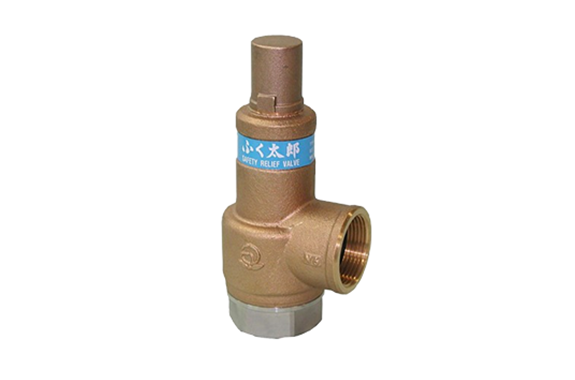

Venn SL-38V type safety relief valve
Manufacturer: Venn Co., Ltd.
Model: SL-38V
Features
- This is a sealed safety relief valve with excellent corrosion resistance.
- The spring case makes of bronze, the main body uses SCS, and the spring is SUS.
- In addition, it is one to two sizes smaller and lighter than our conventional products.
Specifications
| Product code | SL38V-D |
|---|---|
| format | Lifting ceremony |
| type | Soft sheet type |
| Nameplate color | Blue |
| Cap format | No lever |
| Nominal diameter | 15-50 (1/2-2) |
| Applicable fluid | Air / gas / liquid |
| Set pressure range | 0.05-1.0MPa |
| Fluid temperature | 120 ℃ or less |
| End connection | JIS Rc screw |
| Mounting posture | Upright mounting |
| Material body | SCS |
| Material Valve body | SCS (disk: FKM) |
| Material Valve seat | SCS |
| Material Spring case | CAC406 |
