Venn Co.

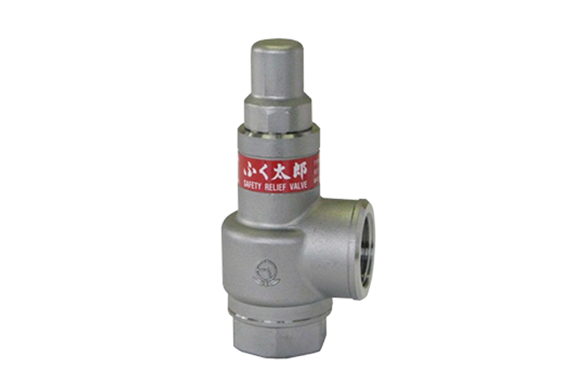

Venn SL-40 type safety relief valve
Manufacturer: Venn Co., Ltd.
Model: SL-40
Features
- This is a sealed safety relief valve with excellent corrosion resistance.
- The spring case, main body made of SCS, and the spring made of SUS all contribute to durability.
- In addition, it can use with three types of fluids: steam, gas, and liquid.
- This applies to the metal seat type.
- Moreover, it is one to two sizes smaller and lighter than our conventional products.
Specifications
| Product code | SL40-D |
|---|---|
| format | Lifting ceremony |
| type | Hand supplies (metal sheet type) |
| Nameplate color | Red |
| Cap format | No lever |
| Nominal diameter | 15-50 (1/2-2) |
| Applicable fluid | steam・ Gas / liquid |
| Set pressure range | 0.05-1.0MPa |
| Fluid temperature | 235 ℃ or less |
| End connection | JIS Rc screw |
| Mounting posture | Upright mounting |
| Material body | SCS |
| Material Valve body | SCS |
| Material Valve seat | SCS |
| Material Spring case | SCS |
