- The drive unit uses a diaphragm, and the upper cover, including the pilot valve, is made of bronze.
- A strainer incorporate into the flow path, making it resistant to dust and rust.
- Additionally, it equips with a water hammer mitigation mechanism.
- It is lightweight, compact, and energy-efficient with low power consumption.
- The VF-14 and VF-14C types are made of bronze, ensuring there are no sources of rust.
Venn Co.

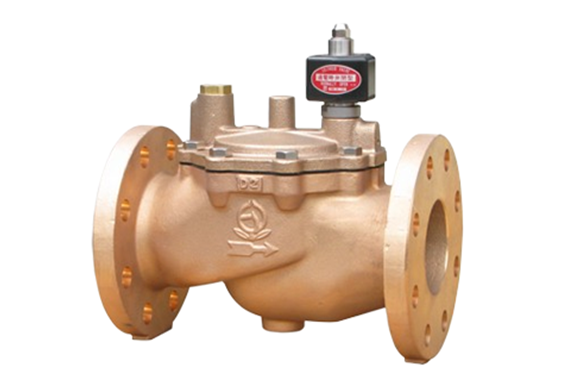

Venn VF-14C type solenoid valve (for liquids and gases)
Manufacturer: Venn Co., Ltd.
Model: VF-14C
Features
Specification
| Product code | VF14C-F |
|---|---|
| type | Diaphragm type |
| Actuation | Energized closed |
| Nominal diameter | 80/100 (3/4) |
| Applicable fluid | Water / air ·oil |
| Fluid temperature | 5-60 ℃ |
| Fluid viscosity | 50cSt or less |
| Applicable pressure | 0.03 to 1.0MPa |
| Minimum differential pressure before and after the valve | 0.03MPa |
