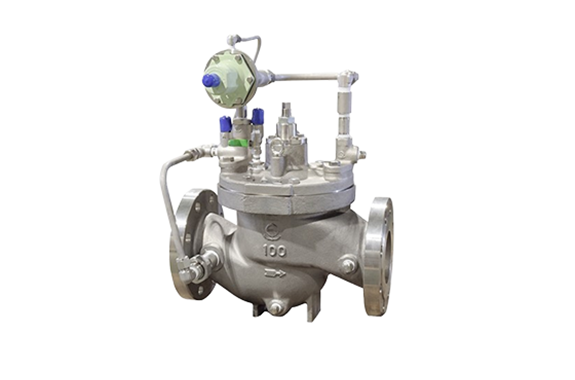

Venn WVM-07 Primary Pressure Regulating Valve (for Water and Liquid)
Manufacturer: Venn Co., Ltd.
Model: WVM-07
Features
- Sensitivity can adjust by changing the needle valve opening to suit the operating conditions.
- As a result, stable and easy operation achieves.
- In addition, both the main valve and the pilot valve can easily disassemble.
- This makes adjustment, repair, and parts replacement simple.
- Moreover, the lift-limiting mechanism allows overflow to be controlled.
Specification
| Product Symbol | WVM07-D |
|---|---|
| Types of valves | Primary pressure regulating valve |
| Uses | for water and liquids |
| Nominal diameter | 80～150（3～6） |
| Applicable fluids | Liquids that do not corrode water and materials |
| Fluid temperature | 5～60°C |
| Primary Side Application Pressure | 1.6MPa or less |
| Set pressure adjustment range | L:0.05～0.35MPa、H:0.3～1.6MPa |
| Blowing pressure | Set pressure adjustment range 0.05~0.35MPa: within 20% of the set pressure × (minimum value 0.03MPa) Set pressure adjustment range 0.3~1.6MPa: within × set pressure within 15% |
| Accumulation | Set pressure× within 10% (minimum 0.03MPa) |
| End connection | JIS 16K RF Flange |
| Pressure Test (Water Pressure) | 2.4MPa at water pressure |
| Mounting Position | Horizontal and vertical freedom |
| Material: Body | SCS |
| Basic valve material body | SCS |
| Basic valve material Key part diaphragm disc | NBR |
| Basic valve material Key part valve seat | SUS |
