Yamato Electric

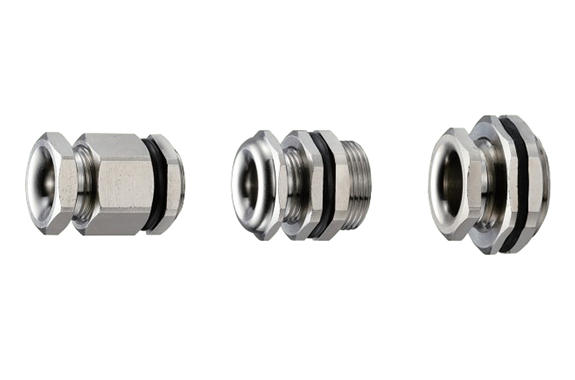

Yamato Electric UYS/ SYS/ MYS Series Cord Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: YS/ SYS/ MYS Series

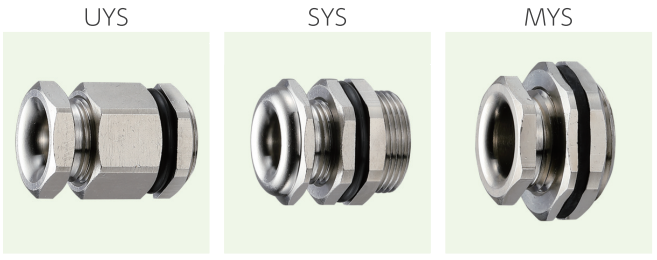

Cord Connector UYS SYS MYS
- This is a small connector that doesn’t take up installation space.

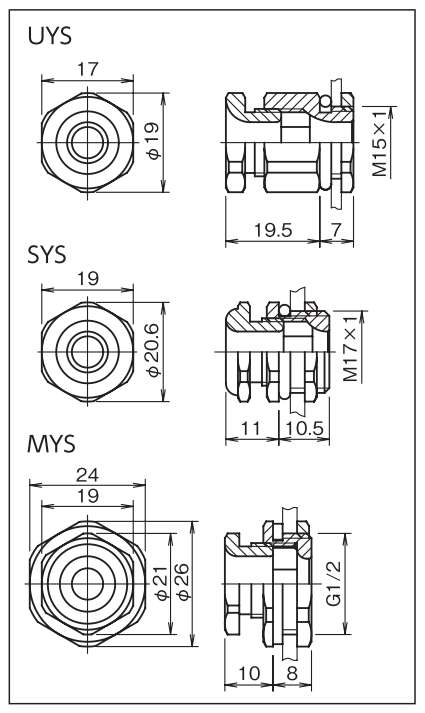

Unit: mm
| Nominal Size | Accommodated Cable Outer Dia | Mass (g) | Qty/Box |
|---|---|---|---|
| UYS- 6 | φ 3〜6 | 29 | 64 |
| UYS- 8 | φ 5〜8 | 29 | |
| UYS- 10 | φ 8〜10 | 27 | |
| SYS- 6 | φ 3〜6 | 26 | 49 |
| SYS- 8 | φ 5〜8 | 27 | |
| MYS- 5 | φ 3〜6 | 26 | 60 |
| MYS- 7 | φ 5〜8 | ||
| MYS- 11 | φ 8〜11 | ||
| Material | Body: Brass Rod | ||
| Remarks | |||
