Yamato Protec Corporation

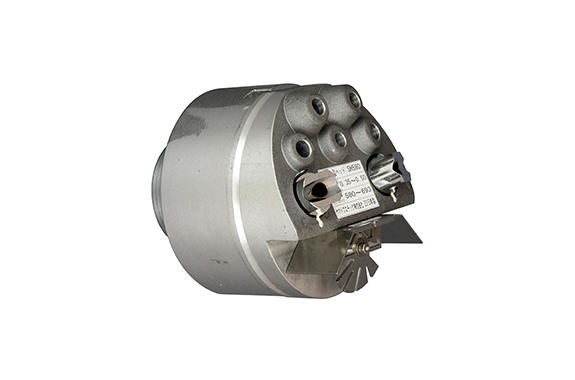

Yamato Protec SH580 Water Discharge Type Sprinkler Head
Manufacturer: Yamato Protec Corporation
Model: SH580
Application
This water-spraying head mounts on the ceiling of high-ceilinged areas. In conjunction with fire detectors and other devices, it covers a wide area of the protected zone and extinguishes fires quickly with a powerful stream of water.
| type | Fixed head (small head) |
|---|---|
| Model | SH580 |
| Test number | S015H020 |
| Standard discharge pressure and discharge rate | 0.35 MPa – 580 L/min |
| Operating pressure range and discharge volume | 0.35～0.50Mpa 580～693L/min |
| Effective water discharge range (H is the mounting height) | 3m≦H＜6m 78.0㎡ 6m≦H≦10m 82.3㎡ |
| Mounting angle | horizontal |
| mass | 1.5kg |
