Yamato Protec Corporation

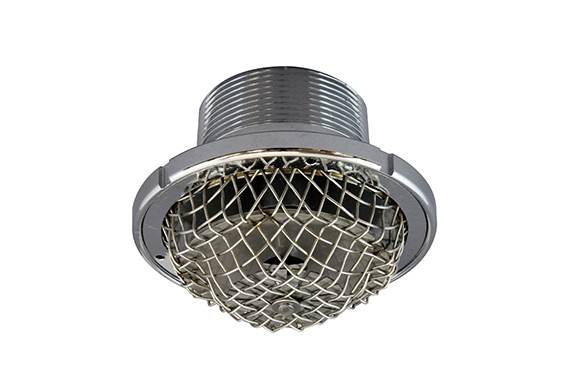

Yamato Protec TH1000 Water Discharge Type Sprinkler Head
Manufacturer: Yamato Protec Corporation
Model: TH1000
Application
This water-spraying head mounts on the ceiling of high-ceilinged areas. This device works with fire detectors to cover wide areas and extinguish fires quickly with powerful water streams.
| type | Fixed head (small head) |
|---|---|
| Model | TH1000 |
| Test number | S015H012 |
| Standard discharge pressure and discharge rate | 0.25 MPa – 1000 L/min |
| Operating water discharge pressure and discharge volume | 0.25MPa-0.50MPa 1000~1410L/min |
| Effective water discharge range (H is the mounting height) | 5m ≤ H ≤ 17.4m 200.0㎡ |
| Mounting angle | vertical |
| mass | 1.2kg |
