Yamato Protec Corporation

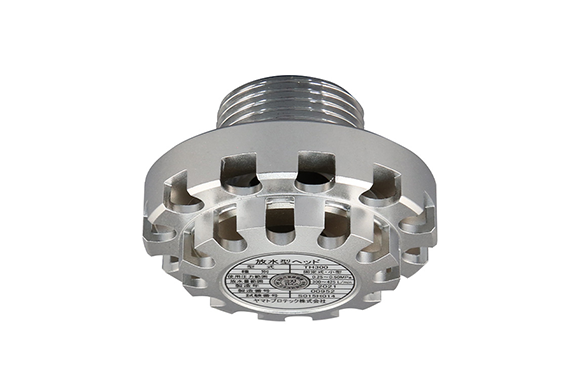

Yamato Protec TH300 Water Discharge Type Sprinkler Head
Manufacturer: Yamato Protec Corporation
Model: TH300
Application
This water-spraying head mounts on the ceiling of high-ceilinged areas. In conjunction with fire detectors and other devices, it covers a wide area of the protected zone and extinguishes fires quickly with a powerful stream of water.
| type | Fixed head (small head) |
|---|---|
| Model | TH300 |
| Test number | S015H014 |
| Standard discharge pressure and discharge rate | 0.25 MPa – 300 L/min |
| Operating water discharge pressure and discharge volume | 0.25MPa-0.50MPa 300~425L/min |
| Effective water discharge range (H is the mounting height) | 6m ≤ H ≤ 18m 50.0 m² |
| Mounting angle | vertical |
| mass | 0.34kg |
