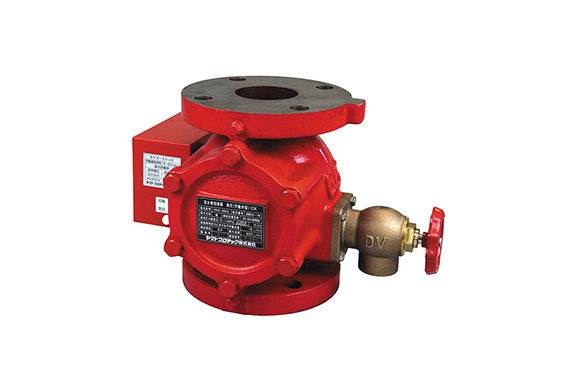

A wet-type differential valve type water flow detection device that reduces the occurrence of non-fire alarms and the risk of water leakage. This product has passed the test based on the ministerial ordinance that stipulates the technical standards for water flow detection devices.
| Product name | YAVS-65AⅡ |
|---|---|
| Model number | Flow No. 30-1 |
| Maximum flow rate (L/min) | 900 |
| Nominal Pressure | 10K |
| Installation Method | vertical |
| Operating pressure range | 0.15～1.4MPa |
| Detection flow rate constant | 50･60 (combined type) |
| Non-operating flow rate | 18L/min or less |
| Contact Capacity | ＡＣ 250V.2A |
| ＤＣ 30V.2A | |
| Delay Time | 5～25sec |
Purpose
Opening a closed sprinkler or release valve drops pressure on the secondary side (the outlet from the valve disc). This pressure drop opens the valve disc, allowing pressurized water or foam solution to flow from the primary side (the inlet up to the valve disc) to the outlet. The device then automatically detects this internal water flow and triggers an alarm signal.
